Tips for Installation and Alignment of Stainless Steel Heat Exchanger Tubes

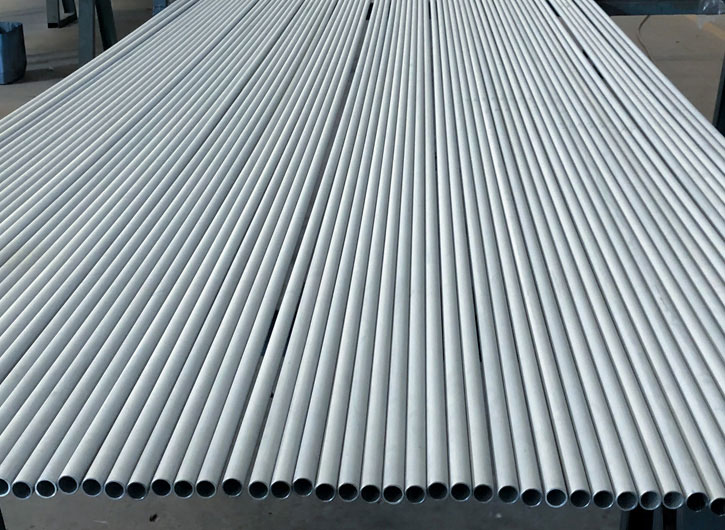

A stainless steel heat exchanger tube is a specially designed tube made from stainless steel, a corrosion-resistant alloy. These tubes are utilized in heat exchangers to transfer heat between two fluids or mediums, such as liquids or gases. Stainless steel is chosen for its excellent thermal conductivity, high strength, and resistance to corrosion, making it an ideal material for heat exchanger applications.

Stainless steel heat exchanger tube offers exceptional corrosion resistance, high thermal conductivity, and customization options, making them ideal for efficient heat transfer in a wide range of industrial applications. Their durability and reliability contribute to their widespread use in critical heat exchange systems across various industries. Installing and aligning stainless steel heat exchanger tubes requires careful attention to ensure proper functioning and efficiency.

Here are some tips for installation and alignment:

Tube Preparation:

Before installation, ensure that the stainless steel tubes are clean, free from debris, and have smooth ends. Deburring or chamfering the edges can help prevent damage during installation.

Tube Support:

Proper tube support is essential to prevent sagging or excessive vibration. Use support brackets or hangers at regular intervals along the length of the tubes. Ensure that the supports are securely attached and capable of withstanding the weight of the tubes.

Tube Expansion:

Stainless steel heat exchanger tubes often require expansion to create a tight and leak-free connection. Use an appropriate tube expansion method, such as hydraulic expansion or rolling, to ensure a proper seal. When expanding stainless steel U tubes, it is essential to follow the manufacturer's recommendations and guidelines, as well as consider the specific characteristics of the material.

Tube Alignment:

Accurate alignment of the heat exchanger tubes is crucial for efficient heat transfer. Use precision tools, such as laser alignment systems, to ensure proper alignment. Align the tubes parallel to each other and perpendicular to the tube sheet or tube header.

Tube Sheet or Tube Header Inspection:

Before installation, inspect the tube sheet or tube header for any damage, corrosion, or debris. Clean the surfaces thoroughly and repair any defects to ensure a proper seal and prevent leakage.

Tube Joint Sealing:

To prevent leakage in stainless steel heat exchanger tubes, including stainless steel welded tubes, it is crucial to employ appropriate sealing methods for tube joints. Sealing methods such as welding, brazing, or mechanical connectors can be utilized. Following industry standards and guidelines specific to the design and operating conditions of the heat exchanger is essential for ensuring effective sealing and preventing leaks in stainless steel welded tubes.

Torque Application:

If mechanical connectors are used, apply the recommended torque to ensure proper sealing and prevent loosening over time. Use a calibrated torque wrench and follow the manufacturer's specifications for the specific connector type.

Leak Testing:

After installation, conduct a thorough leak test to ensure the integrity of the heat exchanger system. Various methods, such as pressure testing or dye penetrant testing, can be used to detect any leaks and ensure a reliable and efficient operation.

Regular Maintenance:

Once the heat exchanger is in service, perform regular maintenance and inspections to identify and address any issues promptly. Check for leaks, corrosion, fouling, or other signs of degradation that may affect the performance of the heat exchanger tubes.

By following these tips and guidelines, you can ensure the proper installation, alignment, and functioning of stainless steel heat exchanger tubes. It is important to prioritize safety, quality, and adherence to industry standards to maximize the performance and lifespan of the heat exchanger system.
