Welding is an essential skill in many industries including construction, manufacturing and automotive. It involves joining metals through a variety of processes like oxy-fuel welding, arc welding and resistance welding. All of these processes require specialized welding equipment to successfully complete the job.
Oxy-fuel Welding Equipment
One of the most basic welding techniques is oxy-fuel welding, also known as gas welding. It uses a fuel gas and oxygen to weld and cut metals. The main equipment needed for oxy-fuel welding includes:
- Oxygen and fuel gas cylinders: These store compressed oxygen and fuel gases like acetylene, propane or hydrogen. They come with pressure regulators to control the gas flow.
- Hoses: Flexible gas hoses connect the cylinders to the torch handle to carry oxygen and fuel gases.
- Torches: The torch is the main hand tool that mixes gases and directs the flame. Different torch tips are used for welding equipment or cutting types of metal.
- Cutting attachments: Cutting can also be done with an oxy-fuel torch using special cutting attachments and tip sizes.
- Striker: This device sparks the flame by striking a flint wheel when the torch valves are activated.
- Gear: Other essential oxy-fuel welding gear includes goggles, gloves and aprons for protection from heat, sparks and ultraviolet arc rays.
Arc Welding Equipment
Arc welding is one of the most versatile and common welding techniques used in industries worldwide. Some key arc welding equipment includes:
- Welding power source: Provides electric current to generate an arc between the base metal and consumable electrode. The main types are welding transformers for stick/TIG welding and inverter power sources for MIG/flux-cored welding.
- Electrode holder: Holds the electrode and allows for proper arc gap formation in stick welding. Water-cooled torch designs are used for TIG welding.
- Cables: Transmit welding current from the power source to the torch or rod through appropriately sized electrode, ground and control cables.
- Earth (ground) clamp: Connects the workpiece metal securely to the welding power source to complete the electric circuit.
- Welding helmets/hoods: Protect eyes from harmful ultraviolet and infrared radiations produced during arc welding with a darkening filter lens.
- Filler rods/wires: Consumable electrodes or wires that melt during the process to form the weld pool and deposit weld metal.
Resistance Welding Equipment
Resistance welding is commonly used for mass production applications in automotive and appliance manufacturing. The primary resistance welding equipment includes:
- Welding transformers: Delivers low voltage and high current to heat metal workpieces through resistance. The types are spot, seam and projection welders.
- Electrode assemblies: Apply pressure on the weld area and conduct welding current through movable copper alloy electrodes. Water or oil cooling is provided.
- Welding controls: Regulate current, voltage and welding time duration to produce consistent welds based on programmed schedules or foot pedal actuation.
- Work clamping fixtures: Hold the metal parts securely in proper alignment and contact during welding under high pressure.

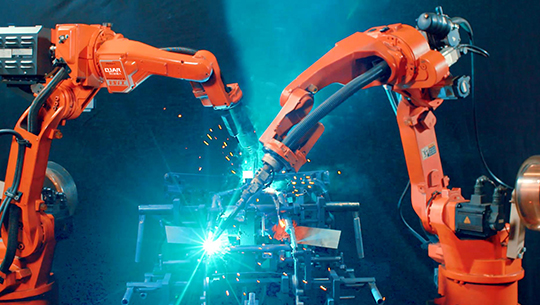

- Welding guns: Mechanized welding heads that position electrode assemblies and perform spot welding on an automated production line.
Other Support Welding Equipment
In addition to the primary welding power sources and torch/electrode setups, some other equipment that supports welding operations includes:
- Welding Positioners: Devices that hold welding torches or parts in the correct position for various welding orientations like overhead, vertical up etc.
- Ventilation Systems: Extract welding fumes and particulate matter through local exhaust to maintain a safe work environment.
- Welding Curtains/Screens: Provide protection from UV/IR radiation and help contain welding sparks during open-air fabrication work.
- Welding Tables: Sturdy work surfaces, some with clamps or vises, to secure and support parts being welded.
- Welding Consumables: Different types and sizes of filler rods, wires, fluxes, gases and cutting consumables required for various processes.
- Welding Personal Protective Equipment: Gear like jackets, gloves, safety boots essential for operator protection.
With the development of advanced welding technologies, other computerized equipment is also being used for monitoring and controlling critical welding parameters. Proper selection and maintenance of specialized welding equipment enables fabrication of quality joints safely and efficiently.
