The Importance of Multilayer Ceramic Capacitors in Various Applications
In the world of electronic devices, there are countless components that work together to ensure smooth and efficient performance. One such crucial component is the multilayer ceramic capacitor (MLCC). These tiny but powerful capacitors play a vital role in a wide range of electronic applications, making them indispensable in modern technology.
Ceramic Capacitor Applications
Ceramic capacitors, including multilayer ceramic capacitors, are widely used in various electronic devices due to their excellent performance and reliability. Let's take a look at some of the common applications of ceramic capacitors:
- Power Supply Filtering: Ceramic capacitors are commonly employed in power supply circuits to filter out high-frequency noise and stabilize the voltage.
- Decoupling Capacitors: MLCCs are frequently utilized as decoupling capacitors to prevent voltage ripples and noise in integrated circuits.
- Timing and Oscillation Circuits: Ceramic capacitors find a home in timing and oscillation circuits, contributing to accurate and stable timekeeping.
- Noise Suppression: With their ability to handle high frequencies, ceramic capacitors are effective in suppressing electromagnetic interference (EMI) and radio frequency interference (RFI).
- Signal Coupling and Blocking: MLCCs are used in coupling and blocking applications to enable or inhibit the flow of AC signals between different stages of a circuit.
- Sensor Applications: Ceramic capacitors are utilized in various sensors to measure physical quantities such as temperature, pressure, and humidity.

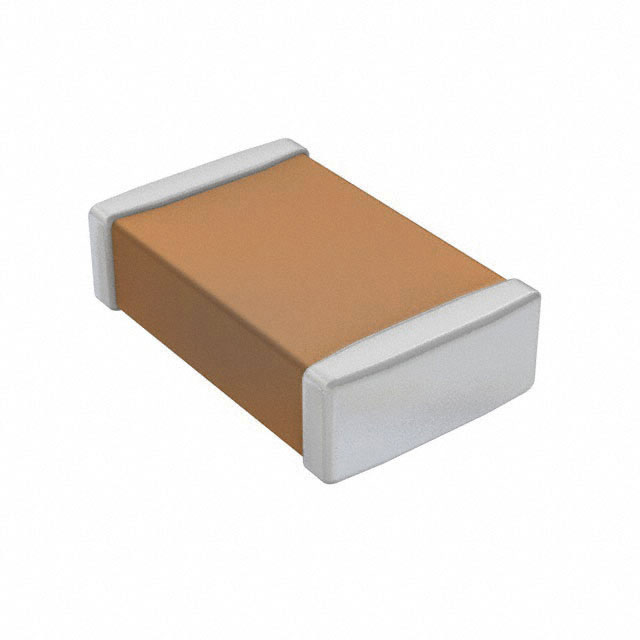

Multilayer Ceramic Capacitors Explained
Multilayer ceramic capacitors, also known as MLCCs, are a type of ceramic capacitor that consist of multiple alternating layers of conductive and dielectric materials. These layers are stacked together and then fused into a monolithic structure, typically through a high-temperature firing process.
The unique construction of MLCCs allows them to offer higher capacitance values compared to other types of capacitors with similar physical dimensions. This is achieved by providing a larger surface area for charge storage within a compact package. The layering design also enables MLCCs to handle high frequencies and exhibit excellent voltage stability.
MLCCs are available in a wide range of capacitance values, voltage ratings, and form factors, making them highly versatile components that can be tailored to suit various application requirements. They are commonly found in surface mount technology (SMT) packages, allowing for easy integration onto circuit boards.
MLCC Manufacturing Process
The manufacturing process of multilayer ceramic capacitors involves several key steps. Let's explore each of these steps in detail:
- Material Preparation: The first step involves preparing the necessary materials for MLCC production. This includes selecting the appropriate ceramic powder and metallic electrodes that will be used in the capacitor layers.
- Layer Formation: The ceramic powder and metallic electrode materials are mixed together to form a slurry-like substance. This slurry is then spray-dried to create a fine powder. The powder is pressed into thin sheets, and the desired capacitor layer pattern is formed by using a screen printing process.
- Layer Stacking: The patterned ceramic sheets are cut into individual square or rectangular pieces, known as "green chips." These green chips are then stacked on top of each other, with metallic electrodes placed between each layer.
- Firing Process: The stacked green chips are subjected to a high-temperature firing process, typically in a kiln. This firing process causes the ceramic material to shrink and fuse together, creating a solid monolithic structure. The metallic electrodes within the capacitor layers establish conductive paths.
- Electrode Connection: After the firing process, the MLCC undergoes a metalization process where conductive terminations are added to each end of the capacitor. These terminations provide electrical connectivity between the internal metallic electrodes and external circuitry.
- Final Inspection: The completed MLCCs are thoroughly inspected to ensure they meet the specified electrical and mechanical requirements. Capacitance, voltage ratings, and physical dimensions are among the parameters checked during this inspection process.
In Conclusion
Multilayer ceramic capacitors (MLCCs) are key components in a vast array of electronic devices and applications. Their ability to provide high capacitance values, excellent voltage stability, and compact form factors make them an essential part of modern technology. From power supply filtering to timing circuits, MLCCs play a crucial role in maintaining the performance and reliability of electronic systems.
Understanding the applications and manufacturing process of MLCCs allows engineers and enthusiasts alike to appreciate the intricate role these capacitors play in our technological advancements. With ongoing research and development, it is likely that we will continue to see innovations in the world of multilayer ceramic capacitors, further enhancing their capabilities and expanding their range of applications.
