Cardiac Electrodes: Essential Tools for Cardiac Evaluation and Monitoring

ashwini bakhade

Cardiac Electrodes: Essential Tools for Cardiac Evaluation and Monitoring

Applications of Cardiac Electrodes

Cardiology electrodes play a crucial role in diagnosing and monitoring a variety of heart conditions. Some of the main applications of these electrodes include:

Electrocardiography (ECG or EKG)

A standard 12-lead ECG allows doctors to evaluate the heart's electrical activity and rhythm. Precise placement of electrodes on the limbs and chest walls is necessary to record accurate ECG tracings. Any abnormalities detected can provide clues about conditions affecting the heart's muscle, valves or electrical conduction system.

Holter Monitoring

Long-term continuous ECG monitoring over 24 hours or more is done using a Holter monitor. This portable device records the heart's rhythm through multiple electrodes attached to the chest via sticky pads. Reviews of the recorded ECG strips can detect arrhythmias that may not be seen during routine office visits.

Event Monitoring

For patients experiencing intermittent symptoms like dizziness or palpitations, an event monitor can be worn for 1-4 weeks. Unlike Holter monitors, these have memory capabilities to store ECG data surrounding a patient-activated event. The stored tracings help diagnose the cause of episodic complaints.

Pacemaker and ICD Programming

Cardiac resynchronization therapy (CRT) devices, implantable cardioverter defibrillators (ICDs) and pacemakers require electrode placement for sensing heart activity and delivering therapies. Electrodes connect the devices to the endocardium or epicardium. Adjusting electrode settings programs the devices for optimal functioning.

Cardiac Electrophysiology Studies

Specialized electrodes are used to conduct invasive electrophysiology studies and ablations. These procedures map the electrical signals in the heart chambers and locate sites of abnormal conduction. radiofrequency energy delivered via these electrodes treats arrhythmias by scarring defective conduction pathways.

Types of Electrodes Used in Cardiology

Understanding the different types of electrodes used in various cardiac applications and procedures is important:

Limb Lead Electrodes

These standard ECG electrodes are placed on the wrists and ankles to complete the electrical circuit and pick up cardiac electrical signals from different axes. Gel or paste is applied to ensure good electrode-skin contact.

Chest Lead Electrodes

Several precordial or chest lead electrodes are attached at predefined intercostal spaces over the chest wall above the heart. These detect electrical impulses from the frontal cardiac plane.

Invasive Electrophysiology Electrodes

Long, thin electrode catheters like mapping and ablation catheters are inserted through blood vessels into the heart chambers. They have embedded electrode points or bands to precisely locate abnormal conduction foci.

Pacemaker/ICD Electrodes

Made of flexible insulated wire with an electrode at the tip, these connect the implanted devices to the endocardium for sensing and delivering pacing or defibrillation therapies. They come in active-fixation or passive forms.

ESU Electrodes

Solid wire or needle electrodes are used as grounding pads during electrophysiology studies and radiofrequency ablation procedures conducted with an electrosurgical unit (ESU). The ESU delivers radio waves for tissue cauterization and ablation.

Holter Monitor Electrodes

Typically five standard ECG Cardiology Electrodes in an array are connected by lead wires to a portable recorder worn on a belt or strap. They continuously record the heart's rhythm over 1-2 days.

Event Monitor Electrodes

Similar to Holter monitor electrodes but have additional memory capabilities. Usually three electrodes record and store 30-second ECG snippets when patient activates the monitor due to symptoms.

Electrode Materials and Construction

The material, size, construction and fixation mechanism of each electrode type influence the quality of signal pickup and ability to sense cardiac electrical activity accurately. Some key considerations:

Materials - Common electrode materials include silver/silver chloride (Ag/AgCl), platinum and stainless steel due to their conductivity, biocompatibility and corrosion resistance qualities. Ag/AgCl provides the lowest electrode–skin impedance.

Gel vs paste - Pre-gelled hydrogel or conductive paste maintains intimate electrode-skin contact without drying up. They fill microscopic skin irregularities for consistent signal acquisition.

Diameter - Invasive electrodes are smaller in diameter (<2mm) to facilitate access into heart chambers. Limb and precordial leads have a wider surface area (10-50mm diameter) to record larger multiphasic signals.

Fixation - Temporary disposable electrodes use adhesive tape or paste. Pacemaker/ICD leads have passive fixation tines or active screwing mechanisms installed on the tip. Mapping catheters have an array of flexible bands or splines.

Lead wires - Thin insulated wires transmit signals from temporary electrodes to recorders. Leads connect implanted devices to electrodes in pacemakers and ICDs. Protection from tearing and breaks is important.

In summary, cardiac electrodes come in many forms tailored for specific applications in diagnosing and managing heart conditions. Proper electrode choice and placement is integral to obtaining accurate electrophysiological data and effective device function. Their role in cardiology is indispensable.

Get more insights on This Topic- Cardiology Electrodes

ashwini bakhade

Understanding Cardiology Electrodes

Sneha 2024-02-14

Types of Electrodes Used in ECGThere are different types of electrodes used during an ECG depending on the specific testing requirements. - Holter Monitor Electrodes: These small self-adhesive electrodes are attached to the chest, back, and other areas to record continuous ECG readings over 24-48 hours. - Ablation Catheter Electrodes: During cardiac ablation procedures to treat arrhythmias, long flexible catheter electrodes are inserted into the heart chambers through blood vessels. Advancements in ECG Electrode TechnologySignificant progress has been made in electrode designs to further enhance ECG capabilities:- Hydrogel/Gel Electrodes: Modern adhesive hydrogel electrodes provide superior signal quality compared to traditional solid gel versions. - Solid Gel Snap Electrodes: These reusable snap electrodes conveniently connect to ECG cables or monitoring devices using stud connectors.

Cardiology Electrodes Market Is Estimated To Witness High Growth Owing To Increasing Prevalence Of Cardiovascular Diseases

Poonam 2023-11-21

The Cardiology Electrodes market is estimated to be valued at US$ 134. Common cardiology electrodes include radiology electrodes, resting ECG electrodes, ambulatory ECG electrodes and Holter monitoring electrodes. Additionally, rising geriatric population is also expected to propel market growth as aged people are more prone to heart conditions. However, availability of alternatives like MRI and CT scans for diagnosis may hamper market growth over the forecast period. Asia Pacific exhibits the fastest growth owing to large patient pool, increasing healthcare awareness, and improving healthcare infrastructure in the emerging countries of the region.

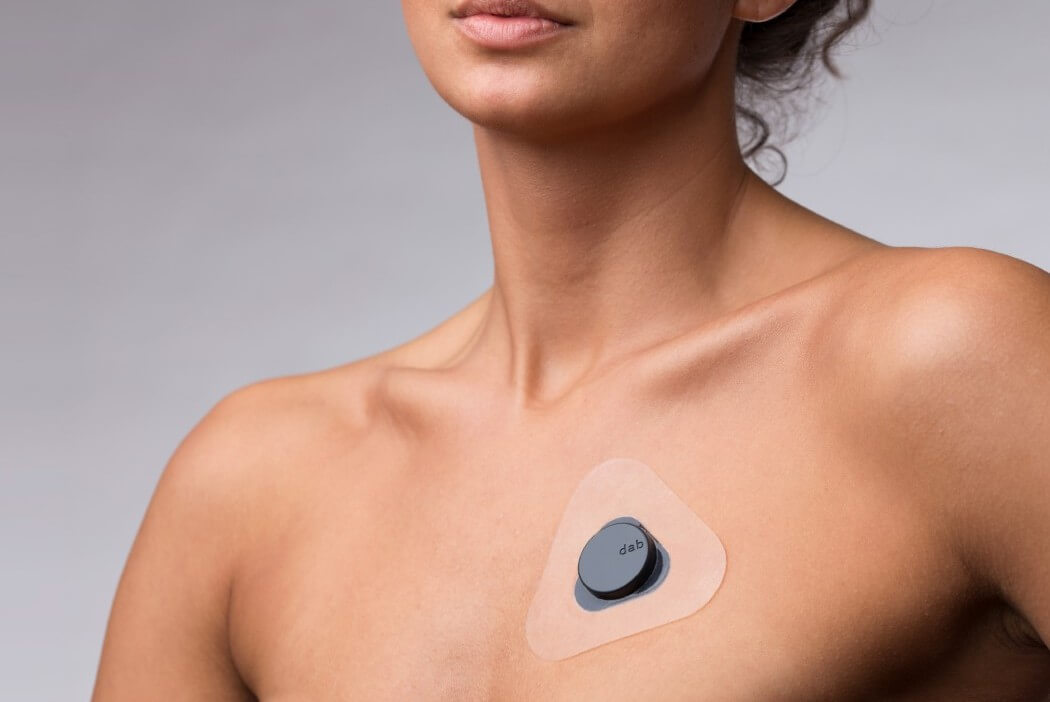

Vitapatch: Empowering Individuals With ECG Sensor Monitoring
