A Comparative Analysis of Different Types of Tubular Heating Elements

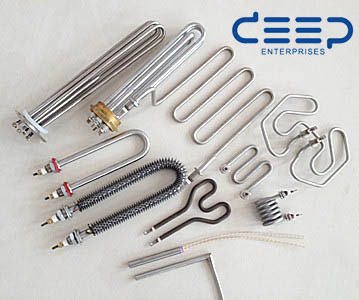

Tubular Heating Elements

With over two decades of experience since our establishment in 1992, we have garnered profound expertise in the field. Our unwavering commitment to excellence has earned us a distinguished reputation in the minds of our audience.

Tubular heating elements are an integral part of many industrial heating solutions. From heating liquids in tanks to providing heat in ovens and furnaces, these elements play a crucial role in various applications. In this article, we will provide a comparative analysis of different types of tubular heating elements, their features, and their suitability for different industrial heating needs.

Industrial heating solutions

Choosing the right type of heating element is crucial for the efficient operation of industrial heating systems. Depending on the specific requirements of each application, different types of tubular heating elements can be used. Here, we will discuss some of the commonly used types:

1. Finned Tubular Heating Elements

Finned tubular heating elements are designed to maximize heat transfer in air heating applications. They consist of a resistance wire coiled and embedded in a metal sheath, which is then fitted with fins to increase the surface area. This design facilitates efficient heat transfer and ensures uniform heating of the surrounding air. Finned tubular heating elements are commonly used in applications such as air heating systems, HVAC systems, and drying ovens.

2. Immersion Tubular Heating Elements

Immersion tubular heating elements are primarily used for heating liquids in tanks, vats, and other containers. They are designed to be directly immersed in the liquid, allowing for efficient heat transfer. Immersion heating elements are available in various designs, including straight, bent, or U-shaped configurations, depending on the specific application requirements. These elements are commonly used in industries such as chemical, oil and gas, food processing, and water treatment.

3. Over-the-Side Tubular Heating Elements

Over-the-side tubular heating elements are specifically designed for heating applications where direct immersion is not possible or practical. They are installed over the side of tanks or containers, with the heating element submerged in the liquid. Over-the-side heating elements are versatile and can be easily removed or replaced without draining the tank. They are commonly used in industries such as plating, pickling, and wastewater treatment.

4. Duct Heaters

Duct heaters are tubular heating elements used in HVAC systems to heat air before it is distributed throughout a building. They are designed to be installed directly into air ducts, providing efficient and uniform heating of the air. Duct heaters are available in various sizes and configurations to suit different HVAC system requirements.

5. Process Heaters

Process heaters are specifically designed for industrial applications that require precise temperature control and uniform heating. They are often custom-built to meet the specific requirements of each application, such as heating solutions for reactors, heat exchangers, and industrial furnaces. Process heaters can be tailored to accommodate different power ratings, sheath materials, and control systems, ensuring optimal performance and reliability.

Tubular heaters

When selecting a tubular heating element for your specific application, several factors need to be considered. These factors include the sheath material, watt density, operating temperature, and required lifespan of the heating element. The selection process can be complex and requires a thorough understanding of the application and the properties of different tube materials.

Choosing the right sheath material is crucial as it determines the element's resistance to corrosion, temperature, and chemical exposure. Common sheath materials include stainless steel, Incoloy, copper, and titanium. Each material has its unique properties and suitability for specific applications. For example, stainless steel is often used in water heating applications due to its corrosion resistance, while Incoloy is preferred for applications involving aggressive chemicals.

Another important consideration is the watt density of the heating element, which refers to the amount of electrical power per unit surface area. The watt density should be selected based on the specific heating requirements of the application to ensure efficient and reliable operation. High watt densities are suitable for applications requiring rapid heat-up, while low watt densities are preferred for applications demanding precise temperature control.

In conclusion, tubular heating elements are essential components of various industrial heating solutions. The selection of the right type of tubular heating element depends on the specific application requirements, such as air heating, liquid heating, or process heating. Factors such as sheath material and watt density play a crucial role in ensuring the efficient and reliable operation of these heating elements. By understanding the different types of tubular heating elements and their features, you can make an informed decision when choosing the right heating solution for your industrial needs.
