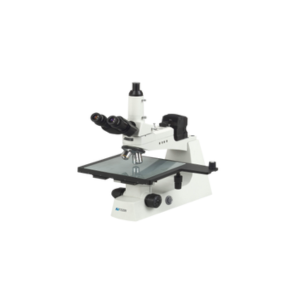

Metallurgical Microscope/Weight:25 kg

Fison's metallurgical microscope studies the microstructures of metals and alloys. It has an upright design with wide range, intuitive controls, and a spacious stage. Features a 6V/20W halogen lamp, , and several filters for the best viewing experience. provides flexibility with its wide-field eyepieces, coaxial focusing, compatibility with polarization sets, and digital camera fitting. Perfect for failure analysis, research, and quality control.

A metallurgical microscope, weighing approximately 25 kg, is a sophisticated instrument designed primarily for examining the microstructure of metals and alloys. This type of microscope plays a crucial role in materials science, metallurgy, manufacturing, and research, where understanding the detailed structure of metals is essential for quality control, failure analysis, and advancing scientific knowledge.

Optical System and Magnification

At the heart of a metallurgical microscope is its advanced optical system. Typically, it employs an infinite optical system, which allows for precise and high-quality imaging of metal samples. This system ensures minimal optical aberrations, providing clear and detailed images necessary for accurate analysis. The microscope is equipped with various objective lenses, often ranging from low to high magnifications (e.g., 5x to 100x or higher), enabling users to observe both macroscopic and microscopic features of the samples.

Illumination

Effective illumination is crucial for obtaining clear and contrasted images in metallurgical microscopy. These microscopes commonly utilize a powerful light source, such as a 6V/20W halogen lamp. The illumination intensity is adjustable, allowing users to optimize lighting conditions based on the specific requirements of the sample and observation technique. Additionally, the microscope may include filters—such as blue, green, yellow, and ground glass filters—that enhance contrast and improve the visibility of certain features within the metal samples.

Stage and Controls

Metallurgical microscopes are designed with a robust and stable stage capable of supporting various sample sizes and weights. The stage typically features a wide range of movement, facilitating the precise positioning and scanning of the samples. Ergonomic design considerations are incorporated into the microscope's controls, including low-position and pre-position control knobs, which ensure comfortable handling during observation sessions. This ergonomic design minimizes strain on the user and enhances operational efficiency, especially during prolonged use.

Versatility and Accessories

Versatility is a hallmark of modern metallurgical microscopes. They often feature a quintuple nosepiece that allows quick and easy interchange of different objective lenses, expanding the microscope's versatility across a wide range of magnifications. Wide-field eyepieces (e.g., EWF10X/22 mm) provide a broad field of view, essential for comprehensive sample analysis and observation. The microscope may also be equipped with additional accessories, such as a polarization set for examining birefringent materials, and compatibility for attaching digital cameras or imaging systems, enabling documentation and analysis of observed structures.

Applications

Metallurgical microscopes find extensive applications in various industries and research fields:

Quality Control: In manufacturing industries, metallurgical microscopes are used to inspect the quality and integrity of metal components. They help identify surface defects, internal structures, and ensure adherence to specifications and standards.

Failure Analysis: In engineering and materials science, these microscopes are indispensable for investigating the causes of material failures. By examining the microstructure of failed components, analysts can determine whether defects, flaws, or environmental factors contributed to the failure.

Research and Development: Metallurgical microscopes support research efforts aimed at understanding material properties, phase transformations, and the effects of processing conditions on metal microstructures. Researchers use these microscopes to advance metallurgical knowledge and develop new alloys with enhanced properties.

Education: In academic settings, metallurgical microscopes are essential tools for teaching and learning about metallography—the study of metal structures. They enable students and researchers to visualize and analyze the intricate details of metallic materials, reinforcing theoretical concepts through practical observation.

Maintenance and Care

Proper maintenance is crucial to ensure the longevity and performance of a metallurgical microscope. Regular cleaning of optical components, such as lenses and eyepieces, helps maintain image clarity and prevent degradation due to dust or debris. The light source and filters should be checked periodically to ensure optimal illumination conditions. Additionally, careful handling and storage in a clean and dust-free environment contribute to preserving the microscope's functionality and accuracy over time.

Conclusion

In summary, a metallurgical microscope weighing 25 kg is a sophisticated instrument that plays a critical role in materials science, metallurgy, and manufacturing industries. Designed for examining the microstructure of metals and alloys, it features an advanced optical system, versatile magnification options, adjustable illumination, ergonomic controls, and compatibility with various accessories. With applications ranging from quality control and failure analysis to research and education, metallurgical microscopes are indispensable tools for professionals and researchers seeking to understand, analyze, and innovate in the field of metallurgy.
