Introduction
In the realm of automation and robotics, stepper motors stand out as pivotal components that drive precision and control. Known for their ability to advance a fixed step angle when electrical pulses are applied, these motors are fundamental in applications requiring exact positioning and repeatability. This comprehensive guide explores the intricacies of stepper motors, including their design, types, working principles, applications, and tips for selection and usage.

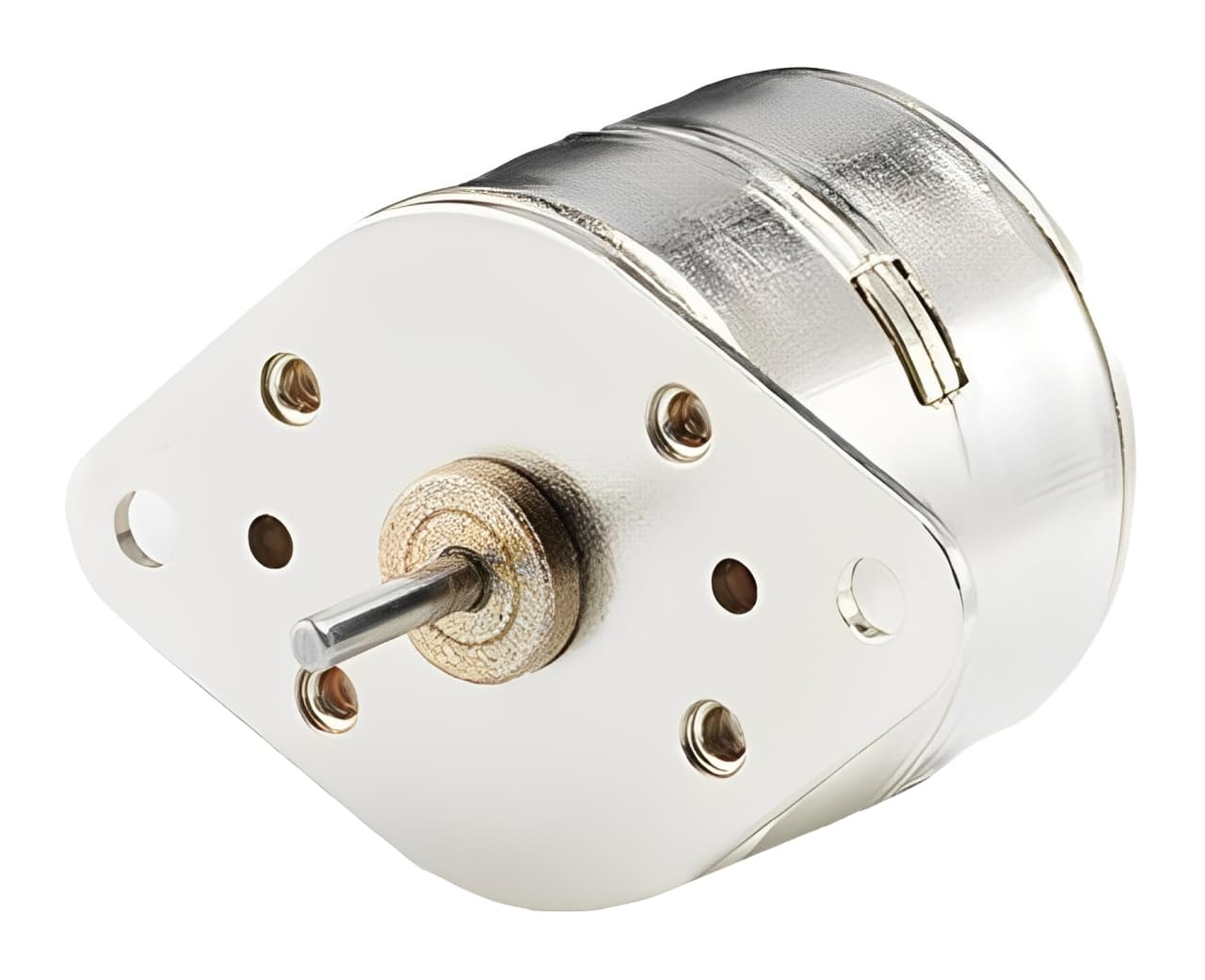

What is a Stepper Motor?
A stepper motor is a type of DC electric motor that divides a full rotation into a number of equal steps. The motor's position can be commanded to move and hold at one of these steps without any feedback sensor (an open-loop controller) as long as the motor is carefully sized to the application with respect to torque and speed.
Types of Stepper Motors
Stepper motors come in various types, each suited to different applications based on their operational characteristics and design. The three primary types are:
1. Permanent Magnet Stepper Motor (PM)
- Description: Utilizes a permanent magnet in the rotor and operates on the attraction and repulsion between the rotor magnet and stator electromagnets.
- Applications: Commonly used in low-cost commercial products like computer printers, analogue clocks, and cameras.
2. Variable Reluctance Stepper Motor (VR)
- Description: Features a plain iron rotor and operates based on the principle of minimizing the reluctance of the magnetic path through the stator to the rotor.
- Applications: Best suited for applications requiring higher step angles but lower levels of torque, such as in textile machinery.
3. Hybrid Synchronous Stepper Motor
- Description: Combines aspects of both PM and VR stepper motors, featuring both a permanent magnet and a toothed rotor, which provides better performance.
- Applications: Widely used in machines that demand precise position control, such as CNC machines and 3D printers.
Working Principle of Stepper Motors

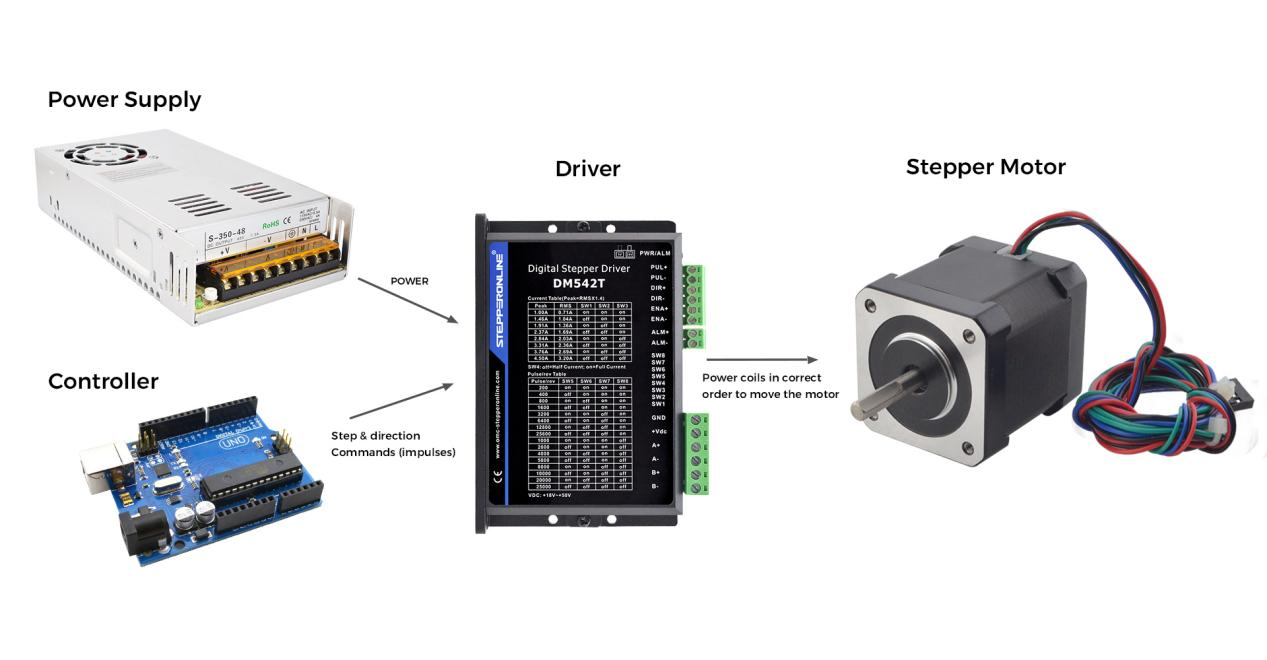

The operation of a stepper motor involves an electronic controller sending pulses of electricity to the motor windings that control the motor's speed and position. The motor moves in precise step increments that allow complete control of the rotation angle without the need for an external feedback system. This section will delve deeper into the electrical configurations and the role of different windings and phases in stepper motors.
Key Advantages of Stepper Motors
- Precision: The ability to move in discrete steps allows precise control over movement.
- Repeatability: Returns to the same position accurately with every input command.
- Low-Speed Torque: Excellent starting and stopping torque compared to other motor types.
- No Feedback Necessary: Functions without the need for position feedback if set up correctly.
Applications of Stepper Motors
Stepper motors are incredibly versatile and find applications across various industries:
- Robotics: For precise movement control in robotic arms, legs, and end effectors.
- Manufacturing: In CNC machining centres for precise tool positioning.
- Consumer Electronics: Digital cameras for focus and zoom functions.
- Automotive: In dashboard gauges for displaying speed, fuel level, etc.
Choosing the Right Stepper Motor
Selecting the right stepper motor involves considering several factors:
- Required Torque: The motor must have enough torque to handle the load.
- Step Angle: Smaller angles allow finer resolution and smoother operation.
- Voltage and Current Requirements: Must be compatible with the driving electronics.
- Physical Size and Mounting: This should fit within the allocated space in your application.
Maintenance and Troubleshooting
Proper maintenance is crucial for the longevity and efficient operation of stepper motors. This includes regular lubrication, ensuring clean connection points, and avoiding overheating. Troubleshooting common issues like stalling or missed steps often involves checking driver configurations and ensuring that all connections are secure.
Conclusion
Stepper motors are a cornerstone of modern automated systems, valued for their precision, reliability, and versatility. Understanding how stepper motors work, their types and applications can significantly aid in selecting the right motor for your needs. With proper maintenance, stepper motors can provide excellent performance in precise positioning applications, contributing to the advancement of technology in various fields.
If you are new to step motors, you may be wondering how to mount one in your application.
You’ll need to be concerned with three things: piloting the motor, fastening it to the mounting surface, and coupling the shaft to your load.The motor outline drawing below, which we acquired from a vendor of high quality step motors, highlights all three:Item 1 is the shaft.
You’ll need a coupling to connect the shaft to your load.
We’ll cover this in more detail in a future post.Item 2 is the pilot.
You’ll need a precise hole in your mounting bracket that is concentric to whatever you’ll connect to the motor shaft.Item 3 represents the feature you’ll use to fasten the motor to the mounting surface – in this case four through holes that can accept a screw or bolt.If you’re not up for machining your own, mounting brackets in standard sizes like NEMA 17, 23 and 34 are available for purchase.
Since step motors generate heat, aluminum mounting brackets are preferable to steel because aluminum will conduct heat out of the motor more efficiently, so you can likely get by with a smaller, less expensive motor.
The Stepper Motor for Robotic Arm is a synchronous electric motor that split the full circular motion into different numbers of steps.
It is best for Robotic Arm.
