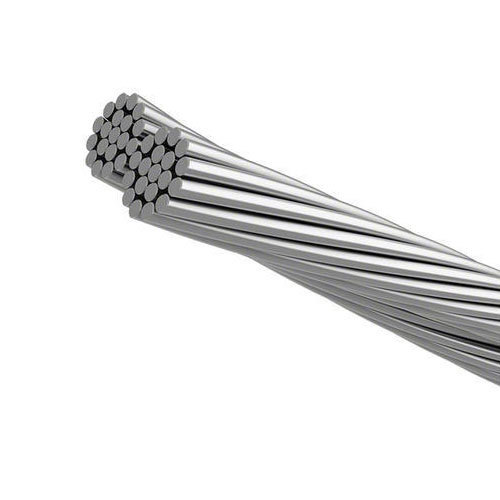

AAC conductor, also known as All Aluminium Conductor, is one of the most widely used conductors in overhead power transmission and distribution lines. It is valued for its lightweight, high conductivity, and corrosion resistance. However, ensuring reliable connectivity and performance requires proper installation and handling precautions. In this guide by HNBFPOWER, we will explain essential connectivity precautions, specifications, advantages, and helpful tips for purchasing AAC conductors safely and efficiently.
1. Connectivity Precaution
1.1 Proper Handling
Always handle AAC conductors with care to prevent surface damage.
Avoid dragging the conductor on rough surfaces or sharp edges to prevent scratches that may weaken conductivity.
Use suitable rollers and pulleys during installation to avoid bending or twisting.
1.2 Clean Contact Points
Ensure all connectors and terminal points are clean and free from dust, oil, or corrosion.
Apply a suitable contact compound if required to maintain stable electrical contact.
1.3 Tight Connections
Loose connections can cause resistance buildup, overheating, and potential energy loss.
Use torque-controlled tools to achieve firm but not excessive tightening.
1.4 Avoid Excessive Tension
While stringing AAC conductors, maintain the recommended sag and tension levels.
Excessive tension can cause conductor stretching and reduce its service life.
1.5 Weather Protection
During installation, protect exposed conductor ends from rain or dust ingress.
Ensure proper insulation and use weather-resistant clamps or fittings.
2. Technical Specifications of AAC Conductor
AAC conductors are made entirely of electrolytically refined aluminum (minimum 99.7% purity). Below are standard specifications followed by HNBFPOWER:
Material: High conductivity aluminum wire (EC grade)
Stranding: Multiple aluminum strands for flexibility and strength
Conductivity: Approx. 61% IACS (International Annealed Copper Standard)
Temperature Rating: Up to 75°C for continuous operation
Tensile Strength: Moderate, depending on strand configuration
Standard Compliance: Follows ASTM B231, IEC 61089, or BS 215 standards
Sizes Available: From 7 strands up to 61 strands, depending on voltage requirement
These technical features make AAC conductors suitable for urban and rural overhead distribution systems, where span lengths are short and mechanical loads are moderate.
3. Advantages of Using AAC Conductor
3.1 High Electrical Conductivity
AAC conductors provide excellent electrical performance due to their pure aluminum construction.
3.2 Lightweight Design
Their low weight allows easier installation and reduces stress on poles and support structures.
3.3 Corrosion Resistance
Aluminum naturally resists corrosion, making AAC conductors ideal for coastal or humid regions.
3.4 Cost-Effective
Compared to ACSR or AAAC, AAC conductors are economical for short-span applications.
3.5 Easy Maintenance
Since AAC conductors have no steel core, they require less inspection and are easier to handle during repairs or upgrades.
4. How to Buy AAC Conductor from HNBFPOWER
4.1 Identify Your Requirements
Before purchasing, determine the line voltage, current capacity, and installation environment. This helps select the correct conductor size and type.
4.2 Check Product Specifications
Always verify the strand count, conductor diameter, and compliance with international standards. HNBFPOWER provides detailed datasheets for every model.
4.3 Ensure Quality Certification
Buy only from trusted manufacturers like HNBFPOWER, which ensures quality control, precise stranding, and performance testing.
4.4 Request Customization
For specific voltage classes or installation conditions, you can request custom-sized conductors, packing types, and labeling.
4.5 Seek Expert Assistance
If unsure about the technical selection, consult HNBFPOWER’s engineering support team for guidance in choosing the most suitable AAC conductor for your project.
Conclusion
Proper connectivity precautions are vital for the safe and efficient performance of AAC conductors. Following standard installation practices, verifying technical specifications, and sourcing from reliable manufacturers like HNBFPOWER ensures durable and efficient power transmission. AAC conductors remain an excellent choice for distribution networks where high conductivity, light weight, and cost-effectiveness are essential.
