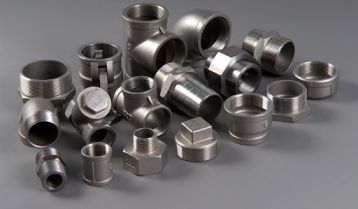

Incoloy 825 Threaded Forged Fittings Manufacture

Sachiya Steel International offers a wide range of Incoloy 825 Threaded Forged Fittings, which has some excellent features such as cost effectiveness, rugged design, durable finish and more. Incoloy 825 Forged Threaded Elbow (UNS N08825) is an austenitic nickel – iron – chromium – molybdenum – copper alloy containing high levels of chromium, molybdenum, nickel and copper to provide high levels of corrosion resistance to both moderately oxidizing and moderately reducing environments. Incoloy 825 Forged Threaded Tee is used in chemical processing, nuclear fuel reprocessing, acid production, propeller shafts and oil and gas well piping.

The hot – working range for Incoloy 825 Forged Threaded Cross is 1600 to 2150 Degree F, where most any commercial coolant may be used in the machining operations. Meanwhile, these Incoloy 825 Forged Threaded Cap are also being offered in different sizes and shapes to our customers. The molybdenum in Incoloy 825 Forged Threaded Fittings prevents resistance to pitting and crevice corrosion.

Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings | Incoloy 825 Threaded Forged Fittings

Incoloy 825 Forged Threaded Coupling is also used in chemical process equipment, propeller tubes, tank trucks; and spent nuclear fuel element recovery. The high nickel content gives Incoloy 825 Forged Threaded Union exceptional resistance to general corrosion, pitting, crevice corrosion, inter – granular corrosion as well as stress corrosion cracking. These Incoloy 825 Forged Threaded Bushing has excellent resistance to reducing and oxidizing acids, along with good resistance to stress – corrosion cracking.

Incoloy 825 Threaded Fittings Specifications

Specifications : ASTM B564 & ASME B564
Size : 1/8” NB to 4” NB (Socket weld & Screwed-Threaded)
Standards
: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket weld Fittings

Incoloy 825 Forged Threaded Fittings Chemical Composition

Grade C Mn Si P S Cr Cu Ni Fe
Incoloy 825 0.05 max 1.00 max 0.5 max 0.030 max 19.50 – 23.50 1.50 – 3.00 38.00 – 46.00 22.00 min

Incoloy 825 Threaded Fitting Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %

Equivalent Grades for 825 Incoloy Forged Threaded Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo

Incoloy 825 Forged Threaded Fittings Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
