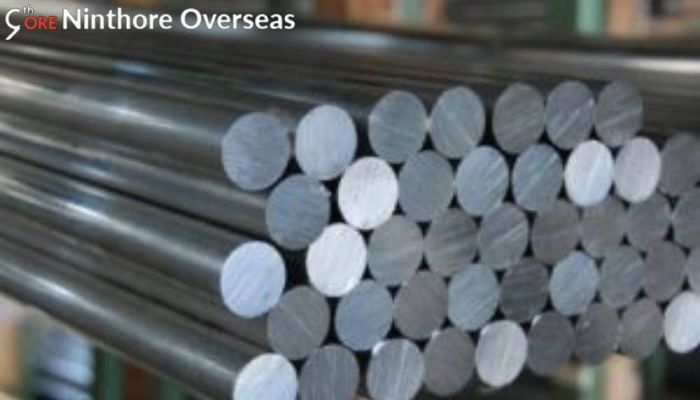

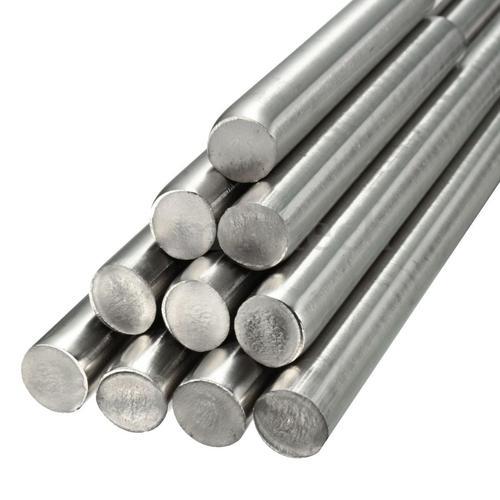

Sachiya Steel International is one of the Leading Manufacturer And Exporter of Stainless Steel 904L Round Bar, which is perhaps the most popular non – harden able ferritic stainless steel available. These Stainless Steel 904L Square Bars is known for good corrosion, heat, oxidation resistance, and its decorative nature. It is important to note that when well – polished or buffed, then the corrosion resistance of our Stainless Steel 904L Flat Bars increases. All welding must occur at higher temperatures, but these Stainless Steel 904L Threaded Bars is easily machined, bent, and formed.
Our Stainless Steel 904L Hollow Bars is often chosen to solve SCC problems, which may also occur with 316L stainless. Meanwhile, these Stainless Steel 904L Hexagonal Bars was designed for maximum resistance to acid attack and demonstrates superior resistance to stress – corrosion cracking in boiling 20 % to 40 % sulphuric acid. Our Stainless Steel 904L Triangular Bars also has excellent general corrosion resistance to sulphuric acid and to chloride stress corrosion cracking.
Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar | Stainless Steel 904L Round Bar
These Stainless Steel 904L Bars can be used for a wide variety of applications including: control valves, pressure relief valves, and centrifugal pumps. Our Stainless Steel 904L Rods has minimal carbide precipitation during welding & excellent mechanical properties and fabricability is excellent design features. Resistance to sulphuric acid is particularly exceptional, but these 904L Stainless Steel Round Bars shows useful resistance in phosphoric acid, nitric acid as well as in chloride environments.
SS 904L Round Bar Specifications |
||
| Specifications | : | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Round Bars |
: | Outside Diameter in the range of 4mm to 500mm |
| SS 904L Bright Bars |
: | Outside Diameter in the range of 4mm to 100mm |
| SS 904L Hex Bars | : | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 904L Square Bars |
: | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 904L Flat Bars |
: | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
904L Stainless Steel Round Bar Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
Stainless Steel 904L Rods Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
Equivalent Grades for 904L Stainless Steel Round Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
SS 904L Round Bar Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
