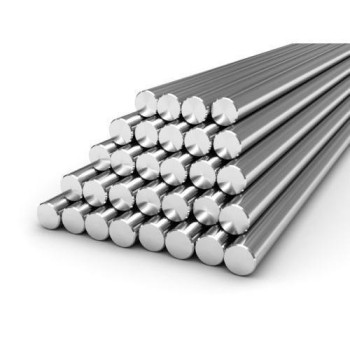

Sachiya Steel International is one of the leading Manufacturer And Exporter of Alloy 20 Round Bar that are hard – wearing in nature and have widespread applications. These Alloy 20 Square Bars has outstanding resistance to corrosion, pitting and crevice corrosion. Specially designed to endure sulfuric acid, our Alloy 20 Flat Bars offers outstanding corrosion resistance. These Alloy 20 Threaded Bars is chromium – nickel – molybdenum alloy that was industrialized for applications comprising acid attack, precisely sulfuric acid. Our Alloy 20 Hollow Bars (UNS N08020) are generally used in Manufacture of synthetic fibers and plastics, Petroleum and Chemical processing machinery, and so on.
Meanwhile, our Alloy 20 Hexagonal Bars are also being offered in different sizes and shapes to our customers, where we also offer the same at best prices. These Alloy 20 Triangular Bars of the same name with the designation “Cb-3” indicates Columbium stabilized. Our Alloy 20 Bars is often chosen to solve stress corrosion cracking problems, which may occur with 316L stainless.
Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar | Alloy 20 Round Bar
The characteristics of these Alloy 20 Rods are at the border between stainless steel and nickel due to the high nickel content. Our Carpenter 20 Round Bars is as a result referred to either as a stainless steel or as a nickel alloy. These Carpenter 20 Rods is a metal alloy consisting mostly of iron, in addition to small amounts of carbon, depending on the grade and quality of the steel.
Alloy 20 Round Bar Specifications |
||
| Specifications | : | ASTM B473 / ASTM SB473 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size |
: | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Alloy 20 Round Bar Chemical Composition
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Alloy 20 | 0.02 max | 1.0-2.0 | 0.7 max | 3.0-4.0 | 0.005 max | bal | 2.0-3.0 | 32 – 38 | 19 – 21 |
Alloy 20 Rods Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi – 80000 , MPa – 551 | Psi – 35000 , MPa – 241 | 30 % |
Equivalent Grades for Alloy 20 Round Bar
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
Alloy 20 Round Bar Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
About Us:
Sachiya Steel International are manufacturers & exporters of Pipes,Tubes ,Pipe Fitting, Fasteners.
Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide. We export our high-quality fasteners in Saudi Arabia, Oman, UAE, Dubai, Kuwait, Qatar, Mexico, USA, Malaysia, Iran and many other countries.
Email: [email protected]
For More Information Visit Our Website: Steel Pipe Factory
Sachiya Steel International is one of the Leading Manufacturer And Exporter of Alloy A286 Round Bar , which offers high ductility in notched sections.
Our Alloy A286 Square Bars is one of the most popular high temperature alloys, which is available in a wide range of ingot, billet, bar, and coil rod sizes.
These Alloy A286 Flat Bars has high strength and corrosion resistance for temperatures up to 1300 Degree F (704 Degree C) and oxidation resistance up to 1800 Degree F (982 Degree C).Oxidation resistance of our Alloy A286 Threaded Bars is high for continuous service to 1500 Degree F, intermittent to 1800 Degree F. The mechanical properties of these Alloy A286 Hollow Bars are developed by suitable solution annealing and precipitation hardening treatments.
Our Alloy A286 Hexagonal Bars is iron – nickel – chromium based austenitic iron based material that as well includes molybdenum and titanium.Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round Bar | Alloy A286 Round BarIron – base austenitic stainless steel that has notched rupture strength superior to any other alloy by means of comparable high – temperature properties, these Alloy A286 Triangular Bars is age – harden able for high mechanical properties.
In fact, the notched rupture strength of our Alloy A286 Bars is superior to many other commercial alloys with comparable high temperature properties.
These Alloy A286 Rods is used in aircraft and industrial gas turbine, super – charger components, jet engines, blades, wheels, castings, frames, fasteners, sockets, flange nuts, screws, afterburner parts.Alloy A286 Round Bar SpecificationsDimensions:EN, DIN, JIS, ASTM, BS, ASME, AlloySize:5 mm To 500 mmDiameter:0.1 mm to 100 mmLength:100 mm To 3000 mm Long & AboveFinish:Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA FinishTolerance:H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirementsForm:Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.A286 Alloy Round Bar Chemical CompositionGradeCrNiMoCoVaAlTiBCFeMnSiPSAlloy A28613.5-16.024.0-27.01.0-1.51.0 max0.1-0.50.35 max1.9-2.350.003-0.010.08 maxBal2.01.00.0250.025Alloy A286 Rods Mechanical PropertiesTemperature, °F70*70400800100012001400Ultimate Tensile Strength, ksi95*145143138131103640.2% Yield Strength, ksi50*959393878862Elongation, %40*242118181318Alloy A-286 Round Bar Physical PropertiesTemperature, °F200800100012001400Coefficient of Thermal Expansion, in/in°F x 10-69.29.69.89.910.3Thermal ConductivityBtu • ft/ft2 • hr • °F8.09.813.014.1–Modulus of Elasticity,psi X 106––242223Alloy A286 Round Bar Application IndustriesOff-Shore Oil Drilling CompaniesPower GenerationPetrochemicalsGas ProcessingSpecialty ChemicalsPharmaceuticalsPharmaceutical EquipmentChemical EquipmentSea Water EquipmentHeat ExchangersCondensersPulp and Paper IndustryAbout Us: Sachiya Steel International are manufacturers & exporters of Pipes,Tubes ,Pipe Fitting, Fasteners.Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide.
