Alloy 20 Threaded Forged Fittings Manufacturer in India

avatar
steel tube

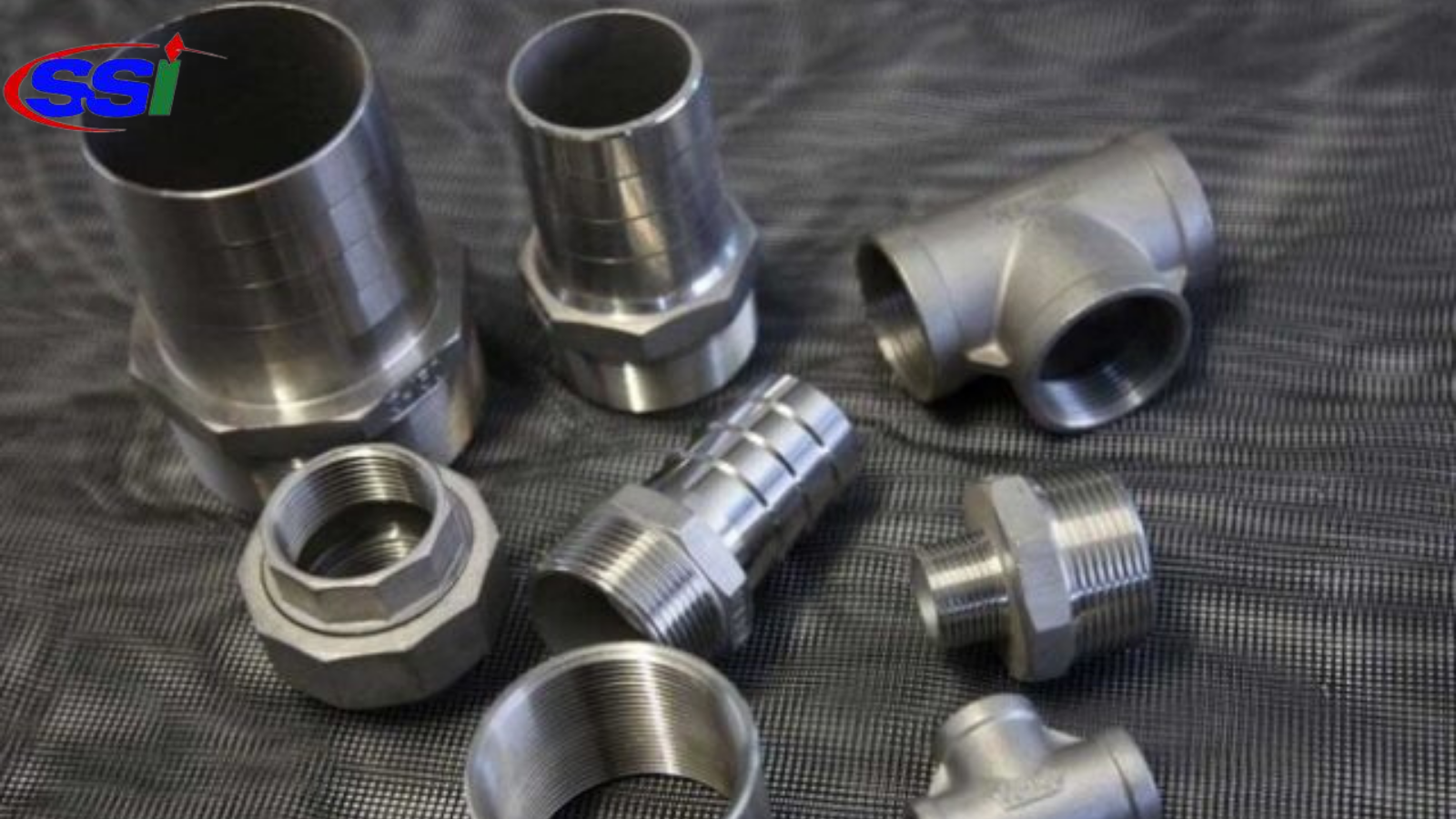

Sachiya Steel International is one of the Leading Manufacturer And Exporters of Alloy 20 Threaded Forged Fittings that is acclaimed for high quality and wide applications. Due to its nickel, chromium, molybdenum, and copper levels, our Alloy 20 Forged Threaded Elbow(UNS N08020) is ideal for use in corrosive environments. These Alloy 20 Forged Threaded Tee, which also includes copper and molybdenum, is popular in the production of gasoline, solvents, explosives, chemicals, pharmaceuticals, and food and synthetic materials.

Restricted carbon plus columbium stabilization in our Alloy 20 Forged Threaded Cross permits welded fabrications to be used in corrosive environments, normally without post-weld heat treatment. Meanwhile, these Alloy 20 Forged Threaded Cap are also being offered in different sizes and shapes to our customers, where we also offer the same at best prices. So, depending on who you talk to this alloy may be referred to as our Alloy 20 Forged Threaded Fittings or as a nickel alloy, where either way it is still great for corrosion resistance.

Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings | Alloy 20 Threaded Forged Fittings

These Alloy 20 Forged Threaded Coupling is often chosen to solve stress corrosion cracking problems, which may occur with 316L stainless. Our Alloy 20 Forged Threaded Union of the same name with the designation “Cb-3” indicates Columbium stabilized. These Alloy 20 Forged Threaded Bushing Fittings appears to fall between both the stainless and nickel categories as it contains characteristics of both.

Alloy 20 Threaded Fittings Specifications
Specifications : ASTM B462 & ASME B462
Size : 1/8” NB to 4” NB (Socket weld & Screwed-Threaded)
Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Threaded Fittings



Alloy 20 Forged Threaded Fittings Chemical Composition



Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20  0.07 max  2.00 max 1.00 max 0.035 max 3.0-4.0  32.0-38.0 19.0-21.0  29.85 min*  2.0-3.0  0.045 max



Alloy 20 Threaded Fittings Mechanical Properties



Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
 8.1 g/cm3  1443 °C (2430 °F) Psi -80,000, MPa -551 Psi – 35,000, MPa – 241 30%



Equivalent Grades for 20 Alloy Forged Threaded Fittings



STANDARD WERKSTOFF NR. UNS AFNOR EN
Alloy 20  2.4660  N08020  Z2NCUD31-20AZ  NiCr20CuMo



Alloy 20 Forged Threaded Fittings Application Industries



  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry



About Us:

Sachiya Steel International are manufacturers & exporters of Pipes, Tubes, Pipe Fitting, Fasteners.

Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide. We export our high-quality fasteners in Saudi Arabia, Oman, UAE, Dubai, Kuwait, Qatar, Mexico, the USA, Malaysia, Iran, and many other countries.
