Punch and Die tool provide increased size, dimension, and efficiency versatility. Drilling options might be restricted by the size and dimensions of the hole that has to be drilled. Larger diameter holes necessitate pre-drilling and a stronger motor drive. Punch and die procedures, on the other hand, allow for the creation of a wide range of forms and sizes, such as a square or oval shape.
By generating a precise fracture of the material, the punch operation separates the metal fragments. In comparison, the cutting motion of a drill produces a huge amount of swarf, covering the work surface in sharp swarf and filings. Let’s discuss the working of Punch and Die tool in this post.
Working of Punch and Die tool

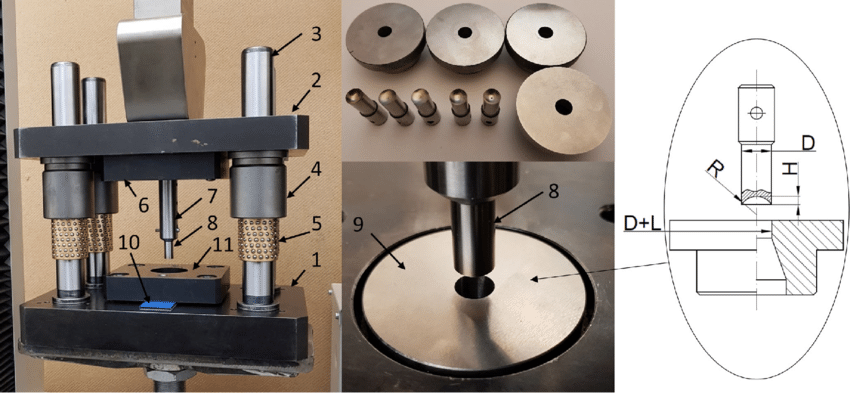

A Punch & Die motion makes use of a solid metal element, the "Punch," which is situated vertically above the "Die." The Die is the same size and form as the Punch and is attached exactly beneath it. Typically, the Punch is hydraulically propelled to meet the Die. The placement and alignment of the Die, with the material to be punched in between, are crucial.
A Punch and Die tools works in three stages:
Deformation: When the Punch is driven down, the material to be cut deforms first.
Penetration: The Punch is pushed farther into the material, beginning to pierce the Die.
Fracture: the material fractures as a result of the punch's force, as opposed to the cutting action of a drill or saw.
Benefits of Punch and Die tools
High precision and consistency
To guarantee long-term stability and durability, punching equipment and its components, such as automobile components, gears, and rams, are hardened at high temperatures. As a result, they are extremely stable and capable of extreme accuracy.
Dependable and Secure
On punching machines, there are two types of brakes: standard and emergency. In a crisis, the emergency brake is designed to bring the vehicle to a full stop. As technology advances, these gadgets will be equipped with increasingly sophisticated sensors, assuring the user's safety and dependability.
High Productivity
Punching machines are characterized as high-productivity machines because they reduce the need for human labor, cutting costs while increasing efficiency. It is expected that as technology advances, machines will become fully automated, requiring no physical labor.
Less Scrap Material
Progressive hammering is a metalworking technique that includes punching, coining, bending and various other methods for altering metal to get the desired final part form. Because most of the material is utilized, there is less scrap.
Lower Part Costs
Punch & die tool are used in the metal forming process of punching and forging, which necessitates a lot of heat. All of the components stated above contribute to lowering the overall cost of your item. Progressive die stamping allows you to produce critical components in the quickest and most cost-effective manner imaginable. They intend to help you save money for your future job.
Quicker Setup
The progressive pressing technique might be set up significantly faster than traditional manufacturing or machining. Many standard fabrication setups and operations, including machining, may be done in a single process using Progressive Die Stamping, allowing for better efficiency.
Conclusion
Punch and Die tools are a great way to pierce sheet metal with accuracy and repeatability, yet with a cheap set-up cost and nearly little maintenance. And all while creating manageable scrap. Punching appears to be a suitable procedure for low to medium volume workshops, but there still appears to be some mystery around punch and die systems, what they can do, and when they should be replaced.
It is used to create a large number of identical holes.
It take place with the help of punch and die tool.Major benefits of the punching process include: It is capable of producing identical holes in both strip and sheet metal during medium or high production processes.
Different phases of punching a metal sheet The process of punching is an amalgamation of three phases.
Let’s discuss these phases and their importance in detail.
The deformation usually causes significant changes in shape but not in the cross-section of the sheet.
Moreover, deformation processes are less energy intensive than casting processes because they are carried out at lower temperatures.
Die punching machine is a tool for punching and embossing flat sheet-materials to produce form-features needed as mechanical element and to extend static stability of a sheet section.
It is suitable for paper, card boards, corrugated boards.
The die punching machine is fitted with the electromagnetic clutch, timer control, oil lubrication system, counter, motor, and feeding & delivery table.
It comes in automatic and semiautomatic operation and used in various industries such as construction and others.
