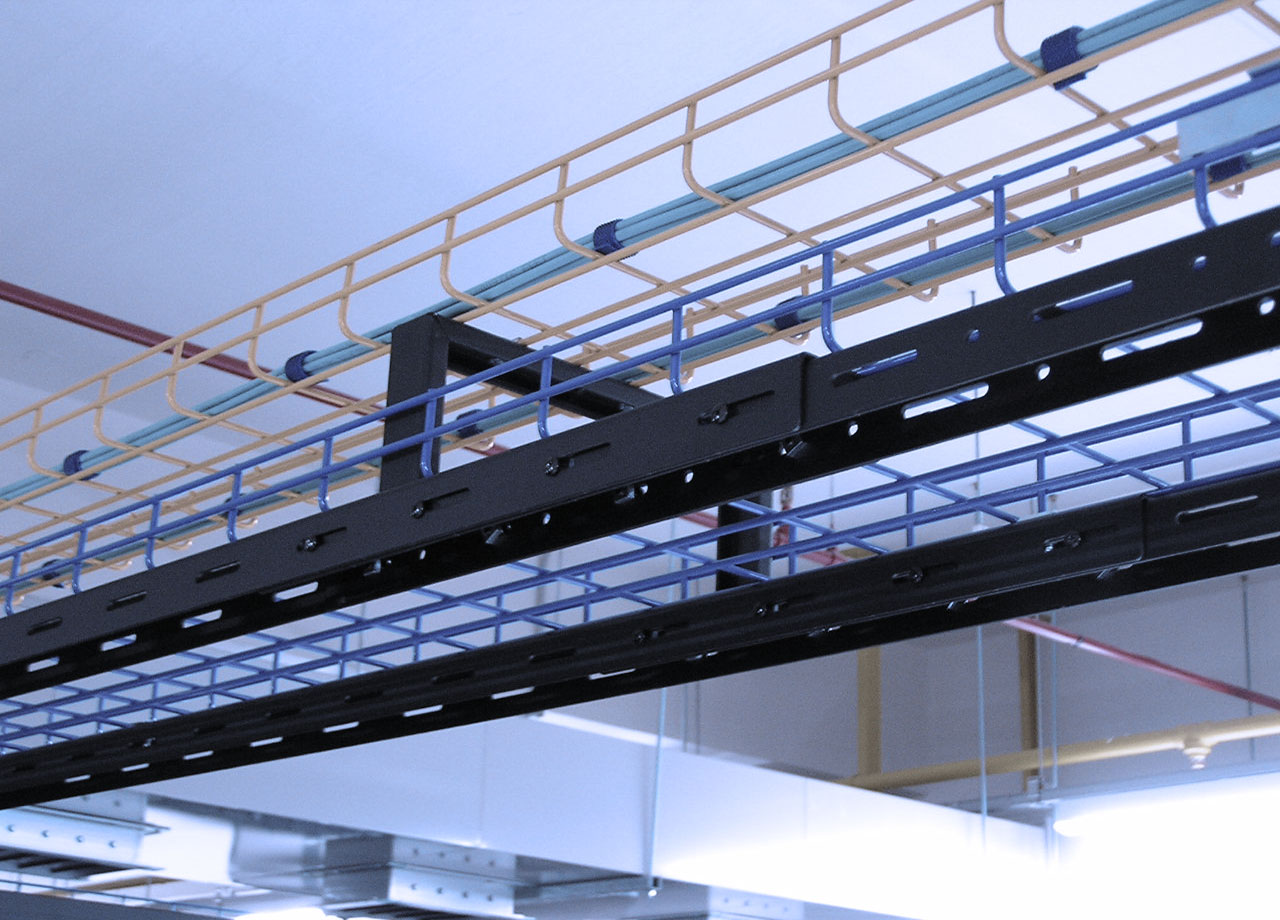

Some Interesting Reasons to Purchase A Perforated Cable Tray

In any significant wiring project, cable trays go about as mechanical help giving insurance to introduced wires.

The use of cable trays is typical when power and transmission lines have a large number of wires.

Wires can overheat when weighty heaps are present, especially if the cabling system is enclosed. Another gamble is dampness development.  Consider power going through the system like an individual running with a coat on.

A completely encased coat causes you to feel sultrier as your body’s hotness and sweat get caught.  Since overheating can be risky, normal cooling becomes basic. It is completed by perforation. That’s why we need perforated cable trays.

More About Perforation:

The perforation is an interaction where the cable tray producer penetrates a bunch of openings in the plate to permit ventilation without decreasing the basic role of offering help.

If we proceed with our similarity, having openings in your coat permits you to chill off and the perspiration to dissipate.  The spot on the cable plate goes about as a system that gives adequate circulation while the electrical wires are running.

A perforated cable tray system accompanies the required frill that is required for the establishment and further insurance.

These incorporate open points, cuts, punctured link plate covers, covers, and so forth that guarantee that the arrangement for the wire course of action stays slick and durable.

How are the Cable Trays Perforated?

Perforated cable tray manufacturers utilize the most recent creation advancements to guarantee that the openings are penetrated either in the side rails or on the lower part of the link plate with accuracy. Perforation is done during the completing phase of assembling.

For Galvanized Iron (GI) plates, this is normally post-galvanization and cutting. A fast punching system enables openings to be precisely squeezed in line with ventilation requirements and plans. Various openings, sizes, shapes and examples can be cut.

When the punching is finished, the sheets are framed into a plate of required aspects. It is because keeping them open from the top could make the wires inclined to dampness and other harm. Perforated cable tray covers effectively create a total envelope for the wires.

Why are Cable Trays Perforated?

As any perforated cable tray supplier will bring up adequate ventilation is expected in any electrical cabling framework to limit chances of unintentional fire.

Consistent temperature monitoring isn’t always feasible in a large cable network, so cable trays with perforated holes are the main method to prevent thermal expansion.

Aside from the dangers of hotness development, power cable systems likewise risk dampness development. It is especially valid for systems that are presented to outside components.

In traditional channels or even common cable trays, this dampness might aggregate and at last harm the wire protection. Perforated cable trays permit the dampness to vanish before any harm can be caused.

Why Perforated Cable Tray Is Getting More Popular?

Save Material:

Among a wide range of cable trays, perforated cable trays utilize less steel than different sorts. How about we take the most famous cable plate size 300mm x 50mm for instance.

Standard cable tray with material thickness 1.5mm will be around 4.7kg/m before openings are perforated.

Regardless of whether we make material thickness as 1.0mm, it will in any case be 3.1kg/m.

Standard perforated cable tray with wire measurement 5.0mm, item weight will be 2.19kg/m. In comparison to other cable trays, perforated cable trays save more steel, still, they are strong enough.

Large Supporting Span:

Contrasted with a 1.5m supporting range for station cable trays and ladder cable trays, the supporting range for qualified perforated cable trays can be 2.0m at the full limit.

It helps save adornments and introduces costs. Furthermore, now and again this is an exceptionally large benefit among complex installing conditions.

Junctions Onsite Making:

A BOM is required before buying a cable tray. Be that as it may, it isn’t difficult to affirm the amount of twist, tee, cross, minimizers, raisers, particularly for enormous tasks.

Workers for hire need to modify these parts from makers before the project starts. Still, changes may have happened during the establishment.

Utilizing a perforated cable tray won’t have this issue. Twists, tees, crosses and other intersection parts can be effectively shaped from perforated cable tray straight segments just with a shaper.

Fast Installation:

Examining the establishment, really we are as yet discussing costs. Perforated cable trays are lighter in weight, so the establishment can be done by just a single individual.

Likewise, it will take less time on perforated cable tray establishment contrasted with other cable plate types. It is significant for the job of project workers.

Flexible Cable Management:

Add to open design, cables can be exited from any piece of Perforated cable tray. Furthermore, the perforated network structure makes cables handily coordinated by cable ties at any place.

The adaptability of the perforated cable tray additionally reflects that they can make various turns. Subsequently, it is entirely adaptable to introduce in different and complex conditions.

Better Energy Efficiency:

Electrical designers are evident that conduit electrical resistivity increments with temperature. Whenever electrical flow goes through cables, the copper or aluminum wire centers would warm up.

If the hotness accumulates and doesn’t dissipate, the opposition will increase with temperature and cause more electric power to squander.

Due to the completely open design, perforated cable trays are awesome for heat ventilating and in this way diminish waste of energy.


There has been a reliable demand for cable trays in the infrastructural market. Numerous creation units have laid down a good foundation for themselves exclusively as perforated cable plate makers.

Based on the examiner’s estimates, the global cable tray market is expected to expand at a CAGR of 9.33% between 2018 and 2022. Aroused Iron (GI) perforated cable trays are relied upon to stay a significant section because of their few benefits and economy.
