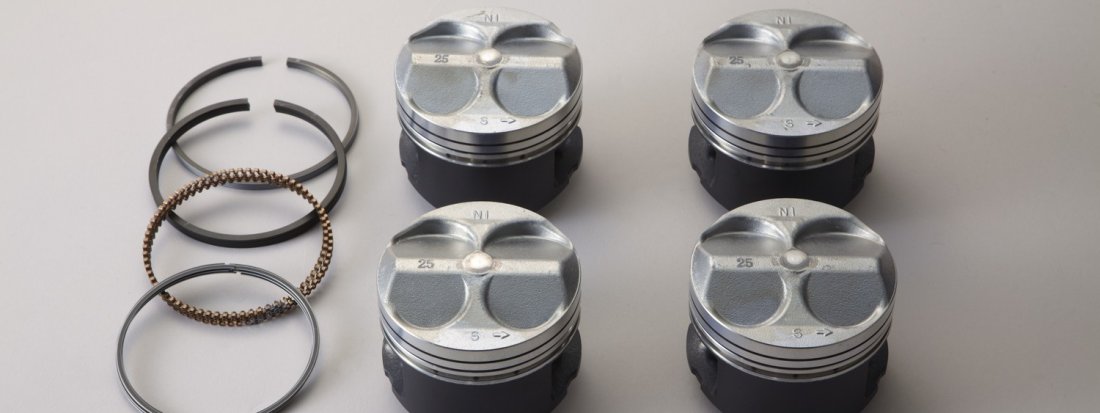

Design Considerations for Piston Rings

Why are the choice of piston rings and the gap between rings so important to the life and power of an engine? In addition, why is the first time the engine starts so important for proper break-in and long life? The first few minutes an engine runs set the stage for its power, efficiency, and longevity.

In an ideal world, a dyno pull would be part of every engine build so the engine could be broken in properly. However, if you are like most people, you can barely afford to build a machine, let alone pay for a dyno session. On the dyno, an engine builder can load the engine and lean on the throttle hard-to-seat piston ring and bearings, which is harder to do on the open road.

Pressure, speed, and lubrication are mechanical needs for piston rings

The pressure on the piston rings is the most important thing to consider when choosing piston rings. However, how often and how fast things move also play a big role. In addition, you should consider the type of lubrication and the coefficient of friction. However, why do these things matter so much?

When a piston ring is put under much pressure, it should be made of the strongest material possible. Self-lubricating fiber-reinforced plastics or steels are often used here, but they are heavier and need to be oiled constantly, which both drawbacks.

Correctly select piston rings

The devil is in the details when choosing the right piston ring, as with most machine parts. For one thing, it depends on how the slots are made and the depth and width of the fixing grooves. Another important factor is the material, affecting the installation tolerances. You can find out what you need to know about piston rings here.

Piston ring shape and dimensions

There are two ways to mount piston rings. They are either put on shafts or rods or in cylinders to act as guides. This is why guide rings have slots: to give them the gripping force and flexibility they need. Depending on the shape of the slot, piston rings can also act as seals or be made to let lubricating or hydraulic oil through. There are also angled and straight slots and Z or tooth-shaped slots that fit the object's shape. Plastic piston rings are easier to shape than those made of other materials because plastics are easy to work with and do not cost much.

Material Variety for Piston Rings

In the world of plastics, there are many different materials to choose from. Not every one of them is good for piston rings. Additives are also needed to improve the material's properties so it can be used for piston rings. Aside from having better properties like elasticity, coefficient of friction, and mechanical stability, the main differences between the materials are their resistance to temperature, thermal expansion, and chemical resistance.

After you have picked out the right valve guide, you will be ready to install them. Resist the urge to rip open the box and dump the rings on your desk while the box sorts the rings into the right places. If you have already done this mistake.
