Middleeast Valve is one of the foremost Ball valve supplier UAE . A ball valve is a closed valve that rotates a ball with a bore inside it to permit, restrict, and control the flow of liquids, gases, and vapours in a pipe system. The shaft that connects the ball to the operational and controlling mechanism that rotates the ball is mounted against two seats. The fluid is not allowed to pass through the valve when the cross-section of the bore is perpendicular to the area of the flow.
Types of ball valves :-
• Floating Ball Valve
Floating ball valves are the most common type of valve which is used in industrial piping systems. These valves are built so that as the seats start to wear, the pressure from the media passing through the valve forces the ball against the downstream seat to maintain a tight seal.
• Trunnion Ball Valve
Trunnion-style ball valves are a design modification from "free floating" ball valves, which are the most prevalent form. The ball is attached to the stem on one end of a trunnion ball valve and to a shaft known as the trunnion on the other. The ball is firmly held in position as a result of this design improvement.
• Fully Welded Ball Valve
A fully welded valve is made with a fully welded and forged body to increase strength, decrease weight, and get rid of various leak-prone areas. In a variety of pipeline systems, they are used to connect and disconnect the medium's flow.
• Top Entry Ball Valve
Top entrance ball valves are utilised in pipe systems where it is possible to reach the ball and seats by removing the top of the valve without removing it entirely from the piping system. In process systems, top entrance ball valves are generally used since full valve removal
• Jacketed Ball Valve
Jacketed valves are practically always used, from performance monitoring and flow works to the monitoring and control of the flow of factors used for machine operation. Valve with a jacket. Ball valves known as "Jacketed ball valves" have a jacket-like covering around their bodies.
Advantages:
· They are lighter than gate valves,
· Gate or Globe valves lack the multi-designed flexibility, which reduces the number of valves required.
· These valves are produced in a variety of sizes and forms to allow for selection versatility.
· The high-quality valves offer safe operation under high temperature and high pressure situations, and they require less force to operate than conventional valves.
· Low-pressure drop (flow is almost unrestricted)
· It is Time effective to operate
Disadvantages:
· Prone to blockages
· Struggling with long term throttling
· Not suitable for thicker media as sedimentation could occur and damage the valve disc & seat.
· Surge pressure could occur due to rapid closing and opening.
Industries:
Ball valves are used in a variety of industrial sectors :-
· Chemical and Petrochemical Industry
· Oil & Gas Industry
· Vacuum
· Water Treatment
· Automotive
Body Parts

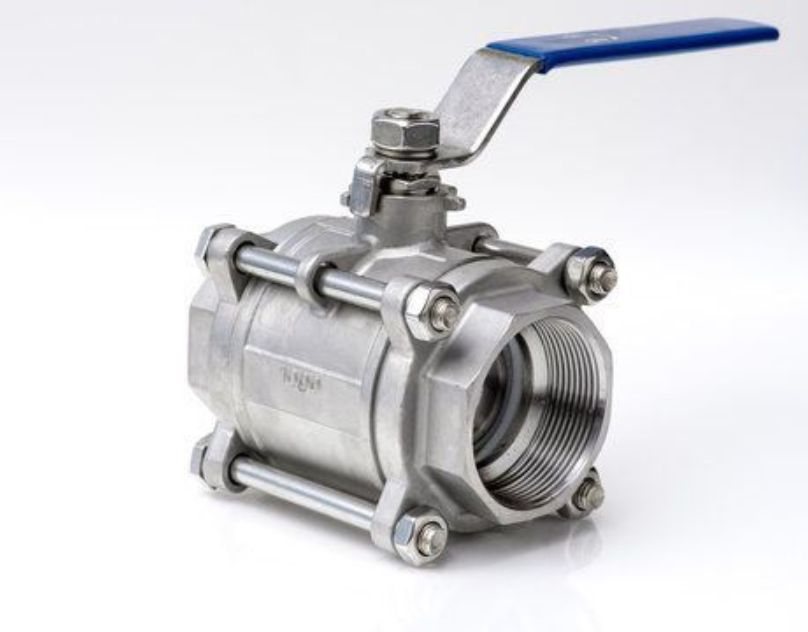

• Three-piece body
• Two piece
• Single Body Top Entry
• Split Body
• Welded
Description:
Body Material: Cast iron, WCB, WCC, WC6, LCC, LCB, Titanium, SS304, SS316, CF8, CF8M, F55, F51, F53, Monel, Ductile Iron.
Class: 150-2500
Nominal Pressure:- PN10-PN450
Ends: Buttweld, Flanged, Socket weld, Threaded
Operations: Lever-operated ball valve, electric actuated ball valve, pneumatic actuated ball valve, gear-operated ball valve
Size: 1/2” to 48”; DN15 to DN1200
Find us for more details - https://www.Middleeastvalve.com/product-category/ball-valve/
Electric Actuated Valve supplier in Dubai
Middleeast Valve is one of the famous leading Electric Actuated valve supplier in Dubai We supply different types of valves to different cites and countries like Dubai , Iraq , Mina Jabel ali . Electric Actuated valve Supplier provides accurate flow control as well as a number of additional benefits. An electric actuated valve is directly attached to an electric actuator, indicating that the valve is completely automated.
Advantages of Electric Actuated Valves:
- Safe and Easy Installation.
- Can handle practically all fluid types and have a low failure rate.
- Provide a leak-proof service.
- Low Failure Rate
- Extremely accurate control and positioning.
Industries that use Electric Actuated Valves:
- Wastewater & Ultra-Pure Water
- Mining
- Chemical
- Textile
- Power Industries
- Oil & Gas
Types of Electric Acutated valves
· Electric Actuated Ball valve
Electrically actuated 2-way ball valves are a simple solution for many basic on/off applications. From fully open to fully closed, they complete a 90-degree (quarter-turn) rotation. When power is available but compressed air is not, even though they normally work more slowly than valves with an air-operated pneumatic actuator.
· Electric Actuated Butterfly valve
A butterfly valve that is manipulated by an electric actuator is known as an electric actuated valve. This valve operates by converting electrical energy into mechanical energy using an electric motor. To allow or prevent fluid flow, the valve disc must be turned with this mechanical energy, expressed as torque.
· Electric Actuated Gate valve
Electric gate valve is a term used to describe the linear movement of the electric gate valve actuator under the control of electric voltage and signal. Electric gate valves can assist you in achieving the goals of remote control, assist in lowering labour expenses, and assist in enhancing production effectiveness.
· Electric Actuated Globe valve
A electric actuated globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Description of Electric Actuator:
Torque: 3 – 9 nm
Operating pressure: 8 Bar
Port Connection: NPT1.4”
Mounting Base: ISO5211
Temperature: 20°C - +80°C
Description:
Materials: CF3M, CF8, WCB, and Stainless steel(SS304, SS316, CF8M, SS316L, SS904L).
Class: 150 to 2500
Nominal Pressure :- PN6 to PN450
Size:1/2″ to 80″
End Connections: Buttweld, Lug, Flanged, Socketweld, Threaded, Wafer
Operation: Electric Actuator.
Visit us to know more about various valves :- https://www.Middleeastvalve.com/product-category/electric-actuated-valve/
