Steam Trap supplier in UAE

Middleeast Valve  is one of the finest  Steam Trap supplier in UAE  .Middleeast  Valve supplies different types of valves around the world. Steam traps are a particular kind of automated valve that filters out condensate and non-condensable gases like air without allowing steam to escape. Steam is frequently used for heating purposes or as a source of mechanical power in the industrial sector. To prevent steam from being lost, steam traps are used in these applications.

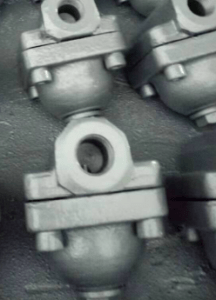

Types of steam trap:

• Mechanical Steam trap

The ability of mechanical steam traps to function is dependent on the disparity in densities between steam and condensate. They are appropriate for a variety of process applications and can pass huge amounts of condensate continuously. Inverted bucket steam traps and ball floats are a couple of the varieties.

• Thermostatic Steam trap

The temperature of the surrounding steam affects how effectively thermostatic traps work. Here are , three different forms of thermostatic traps—liquid expansion, bimetallic, and balanced pressure. Each works differently and is best used for particular kinds of applications.

• Thermodynamic Steam trap

The thermodynamic trap has a clear mode of operation and is an incredibly durable steam trap. The trap operates by means of the dynamic effect of flash steam as it passes through the trap. The only moving part is the disc above the flat face inside the control chamber or cap.

• Bimetallic Steam trap

       Bimetallic steam traps employ the bimetallic element's deformation to open        or close a valve head. It is possible to build some bimetallic steam traps to operate at specific operating temperatures. Field operators can modify the working temperatures of other

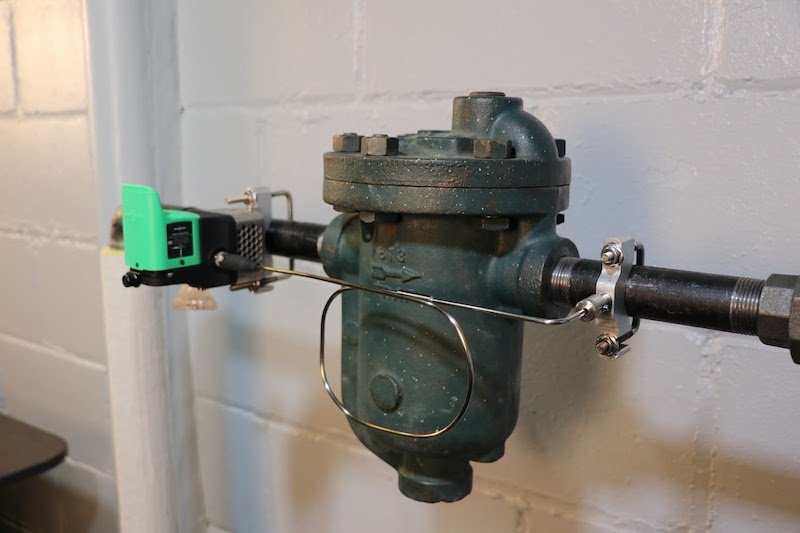

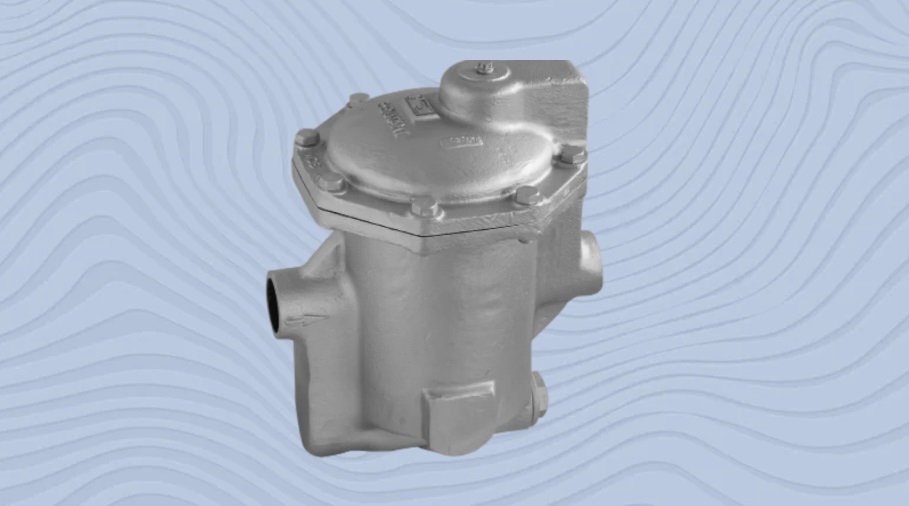

• Inverted bucket Steam trap

The most dependable steam trap operating concept is the inverted bucket. The key component of its straightforward construction is a special leverage mechanism that increases the force the bucket provides

• Free float steam trap

Process-optimal Free Float steam traps that provide continuous discharge. Use with low pressure up to 300 psig. Vacuum to 300 psig is the range of operating pressure. 32 to 428 °F is the operating temperature range.

Applications

·       Heating main drip traps.

·       Shell & tube heat exchangers.

·       Tank heaters with modulating temperature

·       Regulators.

·       Unit heaters requiring fast venting.

·       Steam humidifiers.

·       Air blast heating coils.

·       Air pre-heat coils.

·       Modulating loads.

·       Fast heating start-up applications.

Industries:-

·        Chemicals.

·        Energy and Power.

·        Oil & Gas.

Advantages

·       Discharges the condensate entirely when it reaches saturation temperature.

·       Condensing load is equal to the continuous discharge, which modulates to manage small or heavy loads.

·       Large ports can accommodate large capacity.

·       For quick air venting at startup, use a separate thermostatic vent.

·       Long life is a benefit of modulating ports.

·       cast iron body parts

Description:-

Middleeast  Valve  is one of the finest  Steam Trap supplier in UAE offering an extensive range of valves in numerous sizes, styles and designs.

Body materials: Carbon steel, Ductile iron, Stainless steel (SS304, SS316), Cast iron, Forged steel (A105, F11, F22)

Size: 1/2″ to 2″

Ends:-

Nominal Pressure: PN10 to PN250

Class: 150 to 300

Visit us:- https://www.Middleeastvalve.com/product-category/steam-trap/

Knife Gate Valve supplier in Dubai

Middleeast Valve is topmost Knife Gate Valve Supplier in Dubai. Middleeast Valve supplies valves to various industries in all over the world. A knife gate valve closes completely against a soft sealing barrier by elevating a plate with a planar or "knife" edge out of the flow passage. This edge can physically cut through various obstructions during closing. This supple sealing surface is often only appropriate for use in relatively low-pressure systems because it was not made to withstand high pressure. Rather than a throttled or partial-flow use, gate and knife gate valves are primarily designed for isolation or on/off service.

Industries Where Knife Gate Valves:

• Metals
• Mining and Minerals
• Paper and Pulp
• Raw material industries
• Steel Plants
• Thermal Power Plants
• Water & Wastewater Treatment Plants

Applications of a Knife Gate Valve

•      Clean water

•      Heavy oils

•      Non-flammable viscous fluids

•      Slurries

•      Wastewater

•      Chemical Plants

•      Mining

Advantages of a Knife Gate Valve:

•      Any position may be used to place the valve.

•      Even for pipes with large nominal diameters, a shorter valve length.

•      Readily and affordably accessible everywhere.

•      For high pressures, certain types are appropriate.

•      simple to maintain.

How does Knife gate valve work ?

Knife gate valves were initially developed for the pulp and paper sector. A typical gate valve's wedge and seat would become clogged with stringy pulp, preventing flow shut-off. Knife gate valves were created specifically with a sharp edge to cut through the pulp and seal. Many processing companies today utilise knife gate valves because of their enormous diameters, which make it simpler to manage thick flows of waste water, paper pulp, varnish, slurry, heavy oils, and light grease. It's crucial to remember that these valves do have low-pressure restrictions and are made to seat the blade into an elastomer seal after the material it's handling is cut through. When a solid mass or powder goes through the knife gate, the bulky, dry material ends up packing into the soft seals at the end of the gate, whereas thick liquids readily glide over these soft seals without interruption. The seals eventually won't close firmly enough when this occurs. Should this occur, the seals would be needed to replace

Definition of a Gate Valve:

Gate are used to stop the flow of fluid, a gate valve has a flat closure element that slides into the flow stream. They are one of the most common types of valves, and their primary function is to allow or prevent the flow of liquids.

Gate valves can also be used in harsh environments such as high temperature and high pressure. They are frequently used in:

·       Water treatment

·       Plants

·        Mining

·       Offshore applications

A "gate" is a rectangular or circular wedge that is part of a linear motion valve called a gate valve. To open or close a metal gate, it can be raised or lowered. When lifted, the gate opens and allows flow; when dropped, it closes and blocks the channel.

Gate valves are classified as having a rising or non rising stem. Rising stems indicate the position of the valve. A pointer threaded onto the upper end of a non rising stem valve may be used to indicate valve position. Non-rising stems are frequently used underground or in situations where vertical space is limited.

Description:

Middleeast  Valve is topmost Knife Gate Valve Supplier in Dubai offering an extensive range of valves in numerous sizes, styles and designs.

Class: 150 to 300

Nominal Pressure:- PN6 to PN40Ends: Flanged, Lug, Wafer

Body Material: WCB, WC6, WCC, LCB, LCC, Cast Iron, Ductile Iron, SS304, SS316

Operation: Gear operated, Handwheel operated, Electric Actuated, Pneumatic Actuated

Size: 2" to 24"; DN50 to DN2000

Visit us to know more about various valves :- https://www.Middleeastvalve.com/product-category/knife-gate-valve/
