Kesar Control manufactures pharmaceutical Equipment such as humidity chamber,Dual Chamber,etc

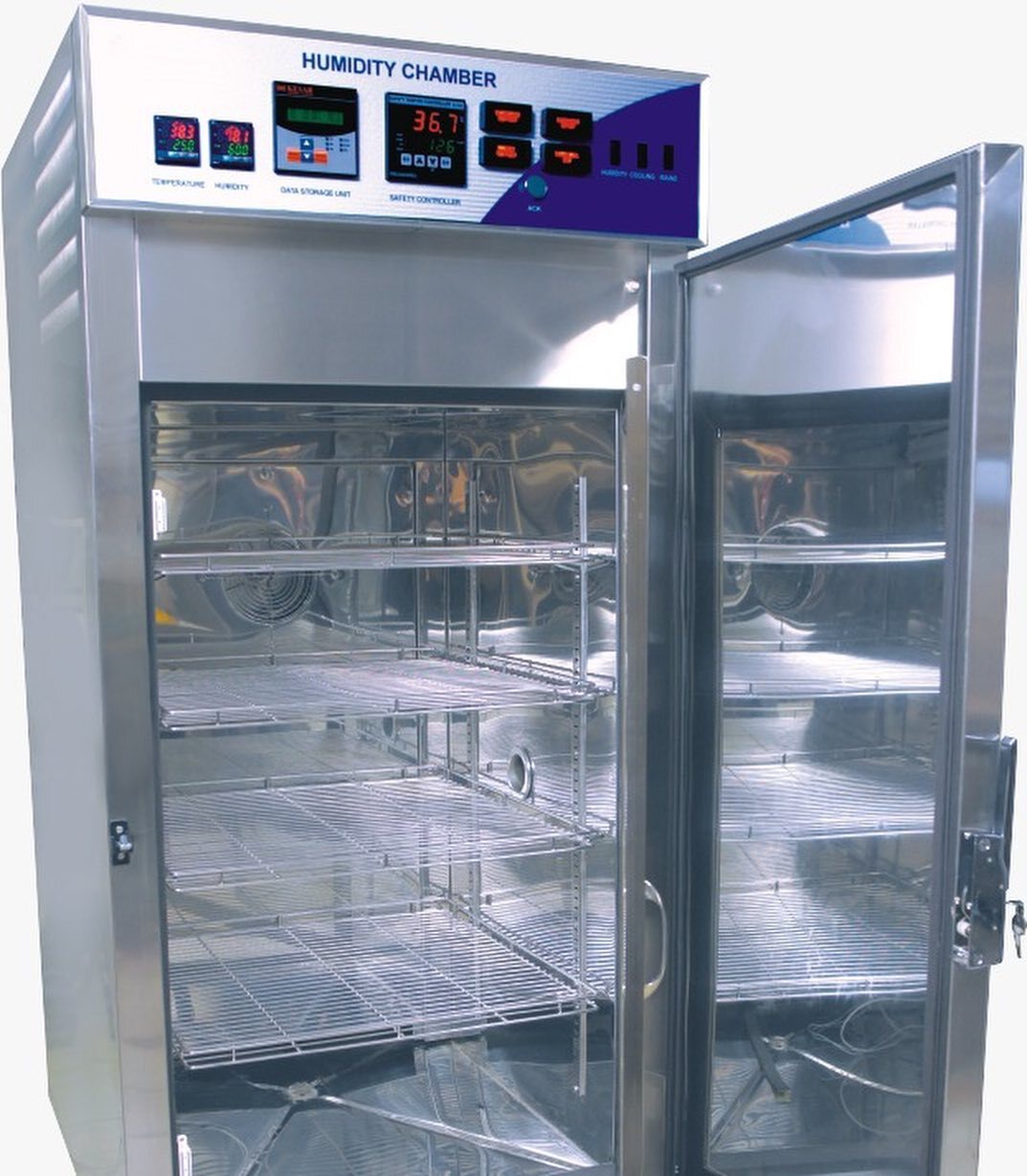

Inner working humidity chamber is water & vapour tight high grade stainless steel
Specifications
- A humidity chamber is a precision testing equipment that works under very tight tolerances. Temperature variations within the chamber shouldn't deviate more than 2 to 3 degree celsius, and the humidity, no more than 5 percent either way. When it comes to photo stability chambers, the light emitted should be 1.2 million lux hours and it should emit more than 200 watts of UV energy for testing samples.
FULL VIEW GLASS DOOR
- A multi-pane viewing door prevents condensation & allows product view. Inner & outer doors are sealed around the entire perimeter by a silicone sponge rubber gasket.
Features
- Heavy duty stainless steel construction
- Illuminated interior.
- Multi-pane viewing door prevents condensation to ensure a proper view.
- Heavy-duty solid stainless steel duly electro polished perforated type trays which are easy to clean and adjustable.
Optional Features
- Stand-by humidity system
- Stand-by refrigeration system
- Scanner
- GSM technology
- Hooter system
Safety Features
- 21 CFR PART-11 COMPLIANCE: Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
- Door hinges and latches are durable and of high quality to ensure a perfectly uniform seal in the long term.
- Inner and outer doors are completely sealed by silicone sponge rubber gaskets for maximum efficacy.
21 CFR PART-11 COMPLIANCE
- Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
TRAYS
- Heavy duty solid stainless steel duly electro polished wire mesh type trays are provide which are easy to clean, time & efforts saving, also adjustable for convenience.
TECHNICAL SPECIFICATION
Technical Specification Temperature Range 20 ℃ to 60 ℃ Humidity Range 40%RH to 95%RH Accuracy +0.2 ℃ & +2.0% RH Uniformity +2.0 ℃ & +3.0% RH Test Suitable for 25 ℃ & 60% RH, 30 ℃ & 65% RH 40 ℃ & 75% RH, 30 ℃ & 75% RH Specially designed chambers for Low Humidity conditions such as 25 ℃ 40% RH, 40 ℃ 25% RH, 30 ℃ 35% RH Control System PLC or PID Based MATERIAL OF CONSTRUCTION
Models Material of Construction Interior Exterior STD S.S.304 Dull Finish G.I Powder Coated GMP S.S.304 Dull Finish S.S.304 Dull Finish CGMP S.S.316 Dull Finish S.S.304 Dull Finish SIZES
Models Capacity (in ltrs.) Dimensions (W X D X H) No. of Trays Internal (mm) Width Depth Height External (mm) Width Depth Height GMP-SC90L 90 450 X 400 X 500 600 X 820 X 1050 3 GMP-SC227L 227 600 X 630 X 600 750 X 1065 X 1180 4 GMP-SC325L 325 600 X 630 X 900 750 X 1065 X 1480 6 GMP-SC400L 400 600 X 630 X 1060 750 X 1065 X 1640 7 GMP-SC500L 500 600 X 630 X 1350 750 X 1065 X 1905 8 GMP-SC600L 600 800 X 800 X 950 950 X 1265 X 1530 6 GMP-SC800L 800 800 X 800 X 1250 950 X 1265 X 1830 9 GMP-SC1000L 1000 800 X 800 X 1570 950 X 1265 X 2150 11
