When it comes to maximizing storage and improving efficiency in a warehouse, cantilever racking systems are among the best solutions. Unlike traditional shelving units, cantilever racks are specifically designed to store long, bulky, and irregularly shaped items such as lumber, pipes, steel bars, or furniture. By understanding how to design and implement the right cantilever racking layout, businesses can unlock hidden storage potential and improve productivity.
In this post, we’ll explore smart cantilever racking design ideas to help you optimize your warehouse space effectively.
Understanding the Basics of Cantilever Racking and Why It’s Ideal for Large Items

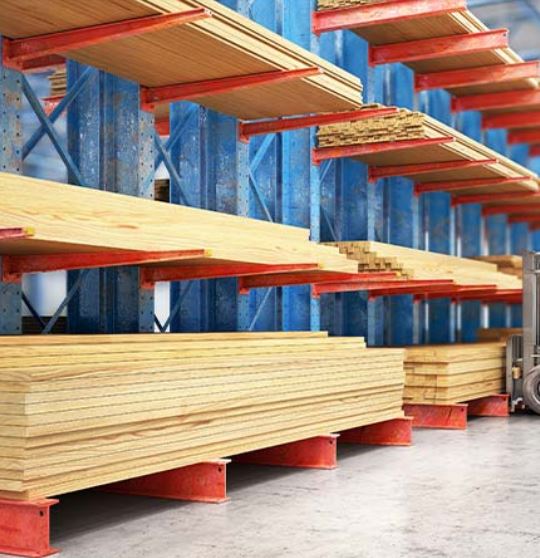

Cantilever racking consists of a series of vertical columns connected by horizontal arms that extend outward. This open-front design eliminates the need for front columns, making it easier to load and unload long or oversized items.
Warehouses that store items such as timber, PVC pipes, or rolled carpets often face challenges with traditional racks due to restricted access and uneven load distribution. Cantilever racks solve these issues by offering:
Easy access for forklifts
Adjustable arm heights to accommodate different item sizes
A clutter-free layout that enhances safety and efficiency
Understanding the basic design principles of cantilever racking is the first step to unlocking the full potential of your warehouse space.
Analyze Your Warehouse Layout Before Choosing a Cantilever Racking System
Before investing in a cantilever racking solution, it’s crucial to analyze your warehouse layout. Key considerations include:
Aisle width: Ensure there’s enough clearance for forklifts to navigate without obstructions.
Ceiling height: Take advantage of vertical space by installing higher racks where possible.
Traffic flow: Design pathways to reduce congestion during loading and unloading.
Storage zones: Separate frequently accessed items from less-used inventory for smoother operations.
By assessing these factors, you can determine where cantilever racks will be most effective, ultimately preventing wasted space and improving accessibility.
Choose Between Single-Sided and Double-Sided Cantilever Racking for Better Space Utilization
Selecting the right type of cantilever racking is key to optimizing your storage space:
Single-sided cantilever racks are perfect for placing against walls.
Double-sided cantilever racks can store materials on both sides, making them ideal for central warehouse areas.
By strategically mixing both types, you can create an efficient racking layout that maximizes floor space and reduces wasted aisles.
Use Adjustable Arms to Adapt to Different Inventory Sizes and Shapes
One of the standout features of cantilever racking is its adjustable arms, which allow you to modify the height and spacing between levels. This flexibility is especially useful for warehouses with varying product sizes.
For example:
Store shorter, heavier items at lower levels for stability.
Reserve higher levels for lighter or longer items.
This adaptable design minimizes unused vertical space and ensures that every square foot is put to good use.
Implement Tiered Racking Designs to Make the Most of Vertical Space
Many warehouses focus on horizontal space while overlooking the benefits of tiered cantilever racking. By stacking racks vertically, you can:
Maximize overhead space in tall warehouses
Separate products by category or size
Reduce floor clutter and improve workflow
Vertical expansion is one of the most effective ways to optimize storage capacity without increasing your warehouse’s footprint.
Integrate Cantilever Racking with Existing Warehouse Systems for a Seamless Layout
A well-planned racking system should complement your existing warehouse operations. Consider integrating cantilever racks with other storage solutions like pallet racking or shelving units.
For instance:
Use cantilever racks for bulky, irregular items.
Reserve pallet racking for standard-sized boxes or containers.
Combining systems in a strategic layout ensures that each type of inventory has a dedicated storage solution, reducing bottlenecks and improving organization.
Prioritize Safety Features in Your Cantilever Racking Design
While maximizing space is important, safety should never be overlooked. A well-designed cantilever system includes:
Load capacity labels to prevent overloading
End stops to keep materials from sliding off the arms
Proper anchoring to ensure racks remain stable during heavy use
By focusing on safety in your design, you not only protect your inventory but also create a secure environment for your warehouse staff.
Optimize Aisle Spacing to Improve Accessibility and Workflow
Even with an efficient racking design, poorly planned aisles can lead to congestion and slow operations. To avoid this:
Maintain consistent aisle widths throughout the warehouse.
Leave sufficient turning space for forklifts or other machinery.
Position racks to encourage one-way traffic for smoother navigation.
Proper aisle planning ensures quick and safe access to stored materials, saving time and reducing the risk of accidents.
Regularly Review and Adjust Your Racking Layout for Long-Term Efficiency
Warehouse needs often change over time due to new product lines, increased inventory, or updated machinery. To stay ahead:
Conduct periodic assessments of your racking system.
Reorganize arms or levels to fit current inventory needs.
Remove underutilized racks to free up space for essential items.
Regular evaluations ensure your cantilever racking continues to serve your operational goals effectively.
Final Thoughts: Smart Cantilever Racking Designs Can Transform Your Warehouse
Investing in well-planned cantilever racking designs can significantly enhance your warehouse’s storage capacity, improve workflow, and create a safer work environment. By focusing on layout optimization, adjustable features, safety considerations, and integration with other systems, you’ll be able to unlock the full potential of your warehouse space.
A thoughtfully designed cantilever racking system doesn’t just store products — it streamlines operations, saves time, and supports future growth.
