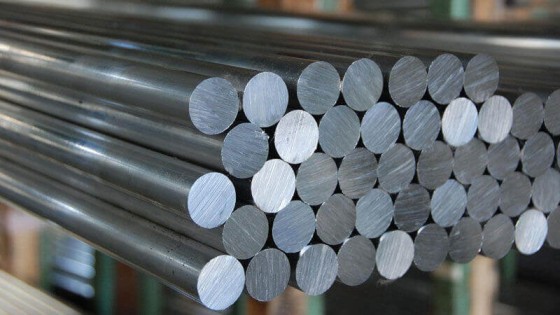

Sachiya Steel International is one of the Leading Manufacturer And Exporter of Incoloy 925 Round Bars, which is mainly used in components and parts for the production of natural gas and oil. Incoloy 925 Square Bars is also used in the petroleum industry for applications such as gas well components, tubing and valves, as well as finding use in high – strength piping systems. Incoloy 925 Flat Bars offers good resistance to stress corrosion cracking, crevice corrosion and numerous aqueous environments including those containing chlorides and sulfides. Molybdenum in Incoloy 925 Flat Bars aids resistance to pitting and crevice corrosion, while chromium provides resistance to oxidizing environments.
Temperature of Incoloy 925 Threaded Bars should not exceed above 983 Degree C (1800 Degree F) in order to restore corrosion resistance of this alloy. High speed steel tools in Incoloy 925 Hollow Bars may be used for interrupted cuts, finishing closing tolerances and cutting with the least amount of cold work hardening. Incoloy 925 Hexagonal Bars has good machinability in both the solution – treated and aged conditions.
Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars | Incoloy 925 Round Bars
Incoloy 925 Triangular Bars is austenitic nickel – iron – chromium alloy made precipitation harden able by additions of titanium and aluminum. Incoloy 925 Bars is an alloy of high resistance to corrosion and high mechanical strength. These Incoloy 925 Rods are accessible to our valuable customers in different range of diameters, sizes and wall thicknesses in customized form and also at quite affordable rates.
Incoloy 925 Round Bar Specifications |
||
| Specifications | : | ASTM B805 / ASTM SB805 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size |
: | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
925 Incoloy Round Bar Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al |
| Incoloy 925 | 0.03 max | 1 max | 0.05 max | 0.03 max | 1.50 – 3.00 | 22.0 min | 42.00 – 46.00 | 19.55 – 22.50 | 0.01-0.05 max |
Incoloy Alloy 925 Rods Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343 °C | MPa – 650 | MPa – 300 | 30 % |
Equivalent Grades for 925 Incoloy Round Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| Incoloy 925 | – | N09925 | NCF 925 |
Incoloy 925 Round Bar Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
About Us:
Sachiya Steel International are manufacturers & exporters of Pipes,Tubes ,Pipe Fitting, Fasteners.
Sachiya Steel International is an internationally acclaimed Pipes And Tubes manufacturing company that exports to more than 90 countries worldwide. We export our high-quality fasteners in Saudi Arabia, Oman, UAE, Dubai, Kuwait, Qatar, Mexico, USA, Malaysia, Iran and many other countries.
Email: [email protected]
For More Information Visit Our Website: Steel Pipe Factory
Sachiya Steel International is one of the Leading Manufacturer And Exporter of Incoloy 825 Round Bars, which is extremely resistant to corrosion, even in acidic environment.
Our Incoloy 825 Square Bars is also used in Chemical process equipment, Tank trucks, Propeller shafts, Electrostatic precipitator electrodes, Calorifiers, Hot vessels for food, water and sea – water.
The fabrication of these Incoloy 825 Flat Bars is typical of nickel – base alloys, with material being readily formable and weldable by a variety of techniques.
The titanium addition serves, by means of an appropriate heat treatment, to stabilize our Incoloy 825 Threaded Bars against sensitization to inter – granular corrosion.These Incoloy 825 Hollow Bars is characterized by good toughness, even under continuous operation, at both room and elevated temperatures, up to approximately 550 Degree C (1020 Degree F).
Our Incoloy 825 Hexagonal Bars is a nickel – base alloy generally similar to Alloy 20 in aqueous corrosion, which requires no post – weld heat treatment.
These Incoloy 825 Triangular Bars has good stress corrosion cracking resistance performance, along with good resistance for pitting and crevice corrosion performance.Incoloy 825 Round Bars | Incoloy 825 Round Bars | Incoloy 825 Round Bars | Incoloy 825 Round Bars | Incoloy 825 Round Bars | Incoloy 825 Round Bars | Incoloy 825 Round BarsOur Incoloy 825 Bars is a nickel – iron – chromium alloy with molybdenum and copper added to it, which is often used for components in pickling equipment like tanks, baskets, chains and heating coils.
Sachiya Steel International is one of the leading Manufacturer And Exporters of Incoloy 925 Flanges, which are made by using the finest quality material.
Incoloy 925 Threaded Flanges (UNS N09925) can also be used for fasteners, and for pump shafts in marine environments.
Molybdenum in Incoloy 925 Slip-On Flanges aids resistance to pitting and crevice corrosion whilst Chromium offers resistance to oxidizing environments.
Incoloy 925 Spectacle Blind Flanges has resistance to chloride-ion stress – corrosion cracking.
Because the Incoloy 925 Weld Neck Flanges offers excellent corrosion resistance in both oxidizing and reducing environments, the grade has proven useful in many “sour” applications in oil and natural gas applications.Tooling and heavy-duty machining equipment are used to reduce the work-hardening of these Incoloy 925 Lap Joint Flanges.
Meanwhile, these Incoloy 925 Blind Flanges are also being offered in different sizes and shapes to our customers.
