Electrical insulation materials are essential in protecting equipment, systems, and operators from the risks of electric current. These materials prevent leakage, short circuits, and electrical failures while ensuring reliable performance in demanding environments.
Key Properties of Electrical Insulation Materials
High Dielectric Strength: Provide strong resistance to electric breakdown.
Thermal Stability: Maintain insulation performance across a wide temperature range.
Mechanical Strength: Withstand stress, vibration, and pressure without losing insulating capability.
Moisture and Chemical Resistance: Remain stable in humid or chemically aggressive environments.
Long-Term Reliability: Offer durability and consistent performance for critical applications.
Common Types of Electrical Insulation Materials

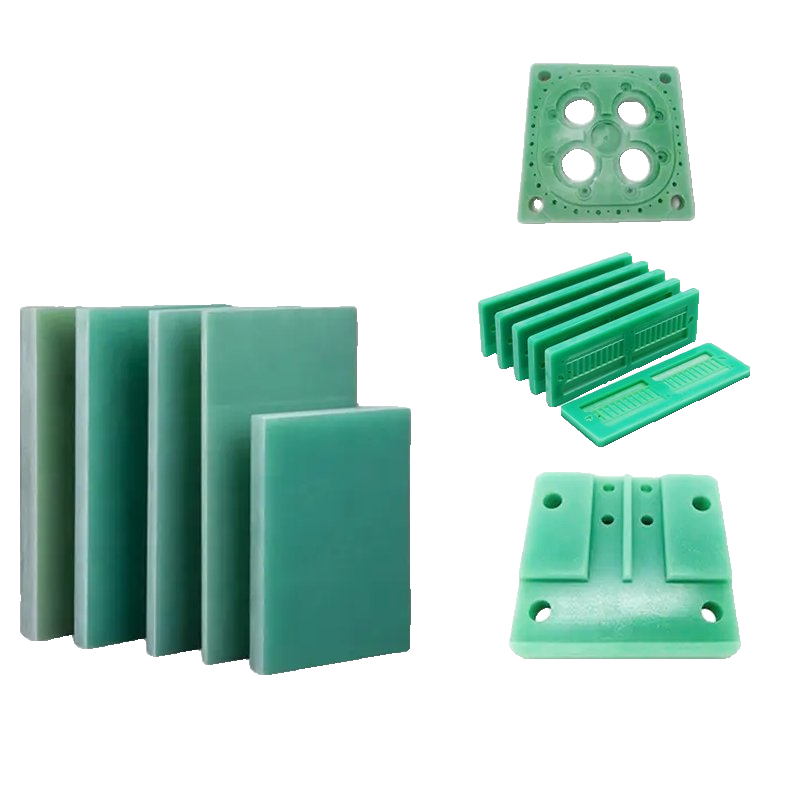

Epoxy Glass Laminates (FR-4, G-10, G-11): Widely used in circuit boards, switchgear, and transformers.
Phenolic Laminates: Strong, lightweight, and ideal for mechanical and electrical applications.
Silicone Glass Laminates (G-7): Excellent heat resistance, suitable for high-temperature environments.
Mica Products: Provide outstanding thermal and dielectric properties for motors and generators.
Polyester and Composite Materials: Lightweight insulation solutions for versatile applications.
Applications of Electrical Insulation Materials
Power Generation and Distribution: Transformers, switchgear, and high-voltage equipment.
Electronics: Printed circuit boards, insulating supports, and connectors.
Aerospace and Defense: Lightweight, high-strength insulation in extreme conditions.
Automotive and EV: Battery insulation, motor components, and charging systems.
Industrial Equipment: Motors, pumps, sensors, and control systems requiring safe operation.
Why Electrical Insulation Materials Are Essential
Electrical insulation materials are the foundation of safety and efficiency in modern electrical and electronic systems. They enable reliable power transmission, protect sensitive components, and ensure safe operation across industries. As technology advances, the demand for high-performance insulation materials continues to grow, supporting innovations in energy, mobility, and industrial applications.
